| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
274 pcs
|
274 pcs | On Request | 1 | On Request | On Request | 2103+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Material | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Lead Spacing | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

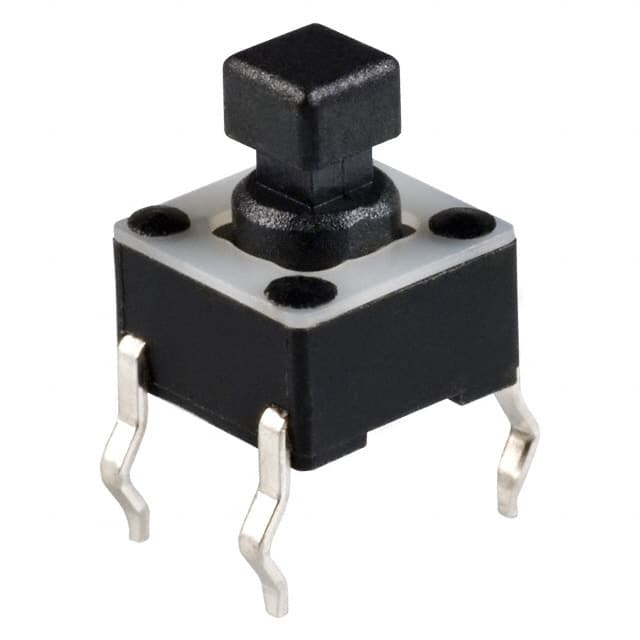

This E-Switch TL1105SPF160Q is a tactile switch designed for through-hole mounting. It operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit and has a contact rating of 0.05A at 12VDC.
The switch features a top-actuated plunger actuator and a vertical actuator height of 7.50mm off the PCB. Its outline dimensions are 6.00mm x 6.00mm. The operating force required is 160gf, and it has a switch travel of 0.25mm.
With an operating temperature range of -20°C to 70°C, this non-illuminated tactile switch is suitable for various applications. It boasts a mechanical life of 100,000 cycles. The termination style is PC Pin, and it is supplied in bulk packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-20°C to 70°C
0.05A @ 12VDC
160gf
Through Hole
RoHS3 Compliant
