| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,154 pcs
|
1154 pcs | On Request | 1 | On Request | On Request | 0634+ | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length, Right Angle | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

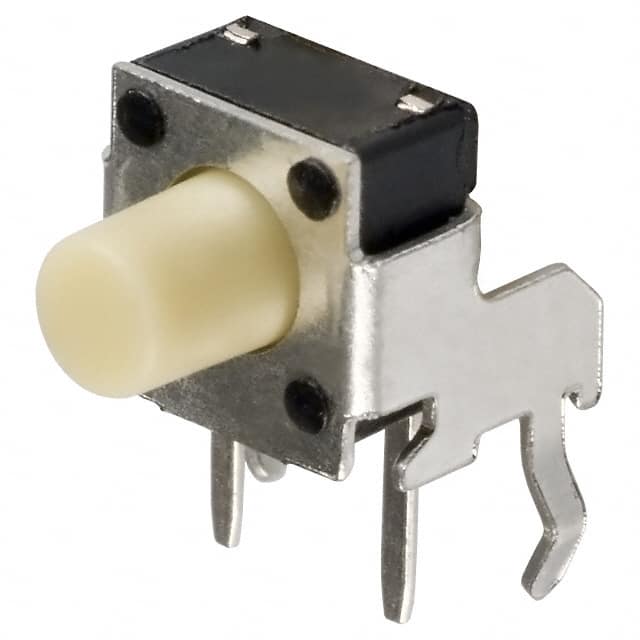

This E-Switch TL1105RF160Q is a tactile switch with a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration. It is rated for 0.05A at 12VDC, making it suitable for various low-power applications.
The switch features a through-hole, right-angle mounting type and PC pin termination style, facilitating easy integration into printed circuit boards. Its dimensions are 7.10mm x 6.55mm with an actuator length of 6.15mm for side actuation. The operating force required is 160gf.
Designed for a wide operating temperature range from -20°C to 70°C, this non-illuminated tactile switch offers reliable performance. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TL1105RF160Q switch has a SPST-NO (Single Pole Single Throw Normally Open) circuit.
The contact rating is 0.05A at 12VDC.
The TL1105RF160Q switch is mounted through hole at a right angle.
The operating temperature range is -20°C to 70°C.
Yes, the TL1105RF160Q is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
