| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
871 pcs
|
871 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Features | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

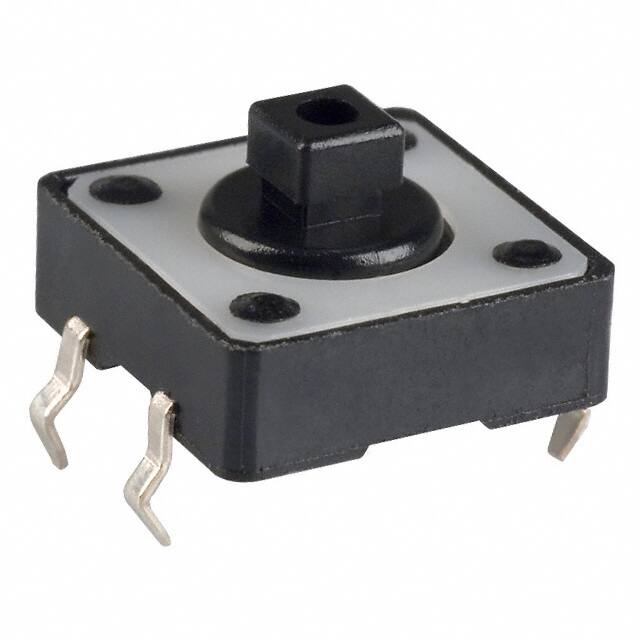

The E-Switch TL1100F160Q is a tactile switch from the TL1100 series, designed for reliable operation in various electronic applications.
This switch features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration and a non-illuminated, top-actuated plunger actuator suitable for cap application. It offers a contact rating of 0.05A at 12VDC and a contact resistance of 100mΩ maximum. The actuation force is specified at 160gf ± 50gf, with a typical travel of 0.3mm.
With a mechanical life expectancy of 100,000 cycles, the TL1100F160Q is built for durability. It operates within a temperature range of -20°C to 70°C. The switch has an outline dimension of 12.00mm x 12.00mm and utilizes PC pin termination for through-hole mounting.
Key features include tactile feedback and a robust construction suitable for applications in telecommunications, consumer electronics, audio/visual equipment, medical devices, and testing/instrumentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.1A at 12V DC.
The travel distance is 0.3mm.
The actuation force is approximately 160 gf.
It uses through-hole mounting with PC pins.
The dielectric strength is 250 VAC.
