| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Function | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| SVHC Present | |
| Voltage Rating |

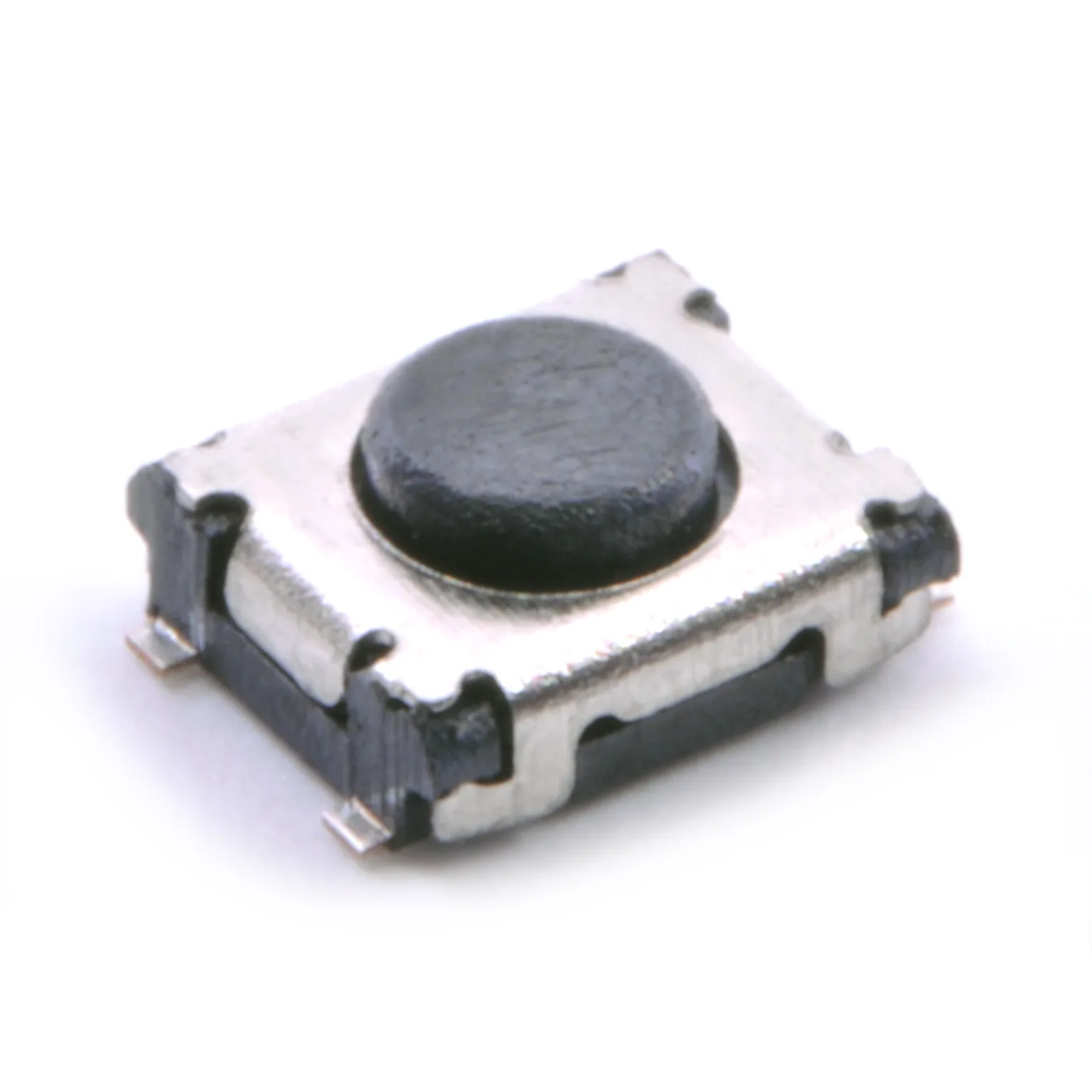

The TL1018 Series from E-Switch is a miniature tactile switch featuring a surface mount (SMT) design. This specific model, TL1018AAAF160QG, is configured for a 1.40mm actuator height and a 160gf operating force.
Key electrical specifications include a 12VDC voltage rating and a 50mA current rating, with a contact resistance of 100mΩ maximum initial. The switch operates on a SPST-NO (Single Pole Single Throw Normally Open) circuit and has a momentary function (Off-(On)). It is rated for a mechanical and electrical life of 500,000 cycles.
The TL1018AAAF160QG has an operating temperature range of -40°C to 85°C. It is packaged in tape and reel for automated assembly. The termination type is Gull Wing, suitable for SMT processes.
This tactile switch is suitable for a wide range of markets including agricultural, appliance, audio visual, automation, construction, and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the TL1018AAAF160QG is 12 VDC.
The TL1018AAAF160QG is supplied in Tape and Reel packaging.
The operating temperature range for the TL1018AAAF160QG is -40°C to 85°C.
The operating current for this tactile switch is 50 mA.
The actuation force required is 160 ±50 gf.
The mechanical/electrical life cycle of the switch is 500,000 cycles.
The TL1018AAAF160QG has an SPST-NO circuit.
