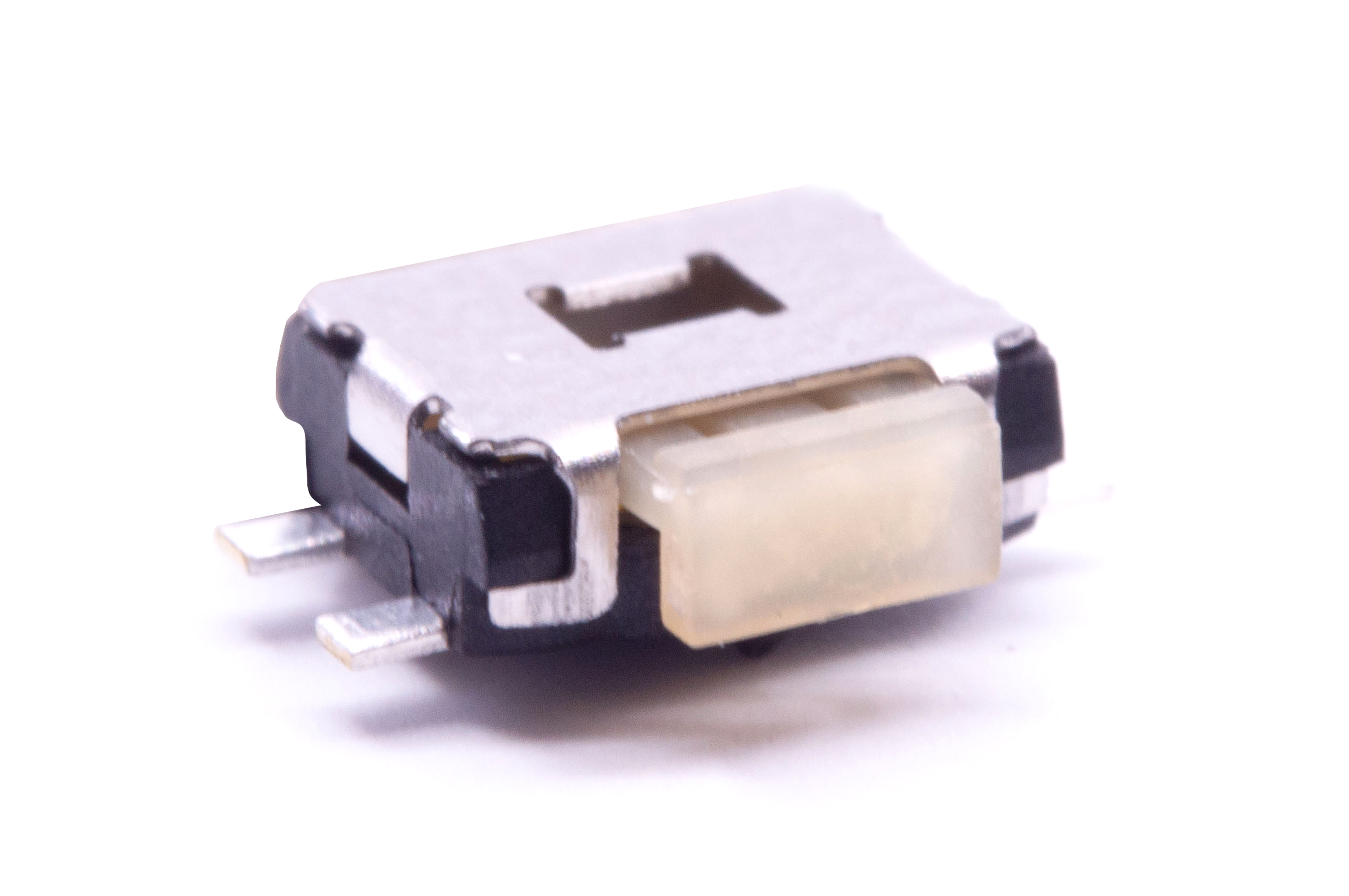

TL1014BF160QG The E-Switch TL1014BF160QG is a tactile switch featuring a SPST-NO circuit and a 0.05A @ 12VDC contact rating. It is designed for surface mount applications with a right-angle orientation.
Mfr Part #:

TL1014BF160QG

Available from 2 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch TL1014BF160QG is a tactile switch featuring a SPST-NO circuit and a 0.05A @ 12VDC contact rating. It is designed for surface mount applications with a right-angle orientation.
✓ Total Stock: 20,149 pcs
$ Price Range: $0.52

TL1014BF160QG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Trace Tec ✓
Non-Authorised Inventory information
149 pcs
On Request
149 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL1014BF160QG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Features
Illumination
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

TL1014BF160QG Description

Short technical summary and product information.

The TL1014BF160QG from E-Switch is a miniature tactile switch designed for surface mount applications. It features a right-angle orientation and a gull wing termination style, making it suitable for automated assembly processes.



This switch operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit and has a contact rating of 0.05A at 12VDC. The operating force is specified at 160gf, with a travel of 0.25mm ±0.1. The contact resistance is a maximum of 100 milliohms initially.



With an operating temperature range of -20°C to 70°C, the TL1014BF160QG is built for reliability, offering a mechanical and electrical life of 200,000 cycles minimum. The switch has a compact outline of 6.40mm x 3.50mm and comes packaged in tape and reel, with 3300 pieces per reel.



It is compliant with RoHS3 standards and has an MSL rating of 1.

TL1014BF160QG Quick Information

Product Type: Tactile Switch
Series: TL1014
Canonical Name: E-Switch TL1014BF160QG Tactile Switch
Subcategory: Tactile Switch

TL1014BF160QG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL1014BF160QG Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL1014BF160QG Features

  • SPST-NO circuit configuration.
  • Rated for 0.05A at 12VDC.
  • 160gf operating force.
  • Surface mount, right-angle design.
  • 200,000 cycle mechanical life.

TL1014BF160QG Applications

  • Ideal for compact electronic devices.
  • Suitable for automated assembly.
  • Used in control panel interfaces.
  • Applications requiring momentary switching.

TL1014BF160QG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit type of the TL1014BF160QG?

The TL1014BF160QG features a SPST-NO circuit.

What is the voltage and current rating for this tactile switch?

This switch is rated for 0.05A at 12VDC.

What is the operating force required for the TL1014BF160QG?

The operating force is 160gf.

What are the dimensions of the TL1014BF160QG switch?

The switch has an outline of 6.40mm x 3.50mm.

What is the operating temperature range for this switch?

The operating temperature range is -20°C to 70°C.

How many cycles is the TL1014BF160QG rated for?

It has a mechanical and electrical life of 200,000 cycles minimum.

What is the contact resistance of the TL1014BF160QG?

The initial contact resistance is a maximum of 100 milliohms.
