| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
245 pcs
|
245 pcs | On Request | 1 | On Request | On Request | 1204 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Slew Rate | |
| Storage Temperature | |
| Supply Current | |
| Tape & Reel |
The STMicroelectronics TL084BCDT is a JFET input operational amplifier IC designed for various amplification tasks. This device integrates four independent operational amplifiers within a single package, offering design flexibility and space savings.
Key electrical characteristics include a slew rate of 16V/µs and a gain bandwidth product of 4 MHz, making it suitable for a range of signal processing applications. It operates with a wide supply voltage span from 6V to 36V and draws a typical supply current of 1.4mA per channel. The input bias current is a low 20 pA, and the input offset voltage is 1 mV.

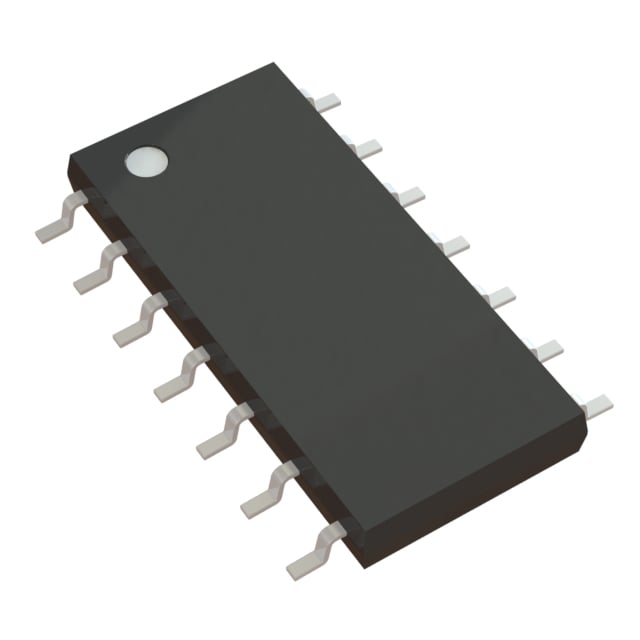

Packaged in a 14-SOIC surface mount configuration, the TL084BCDT is designed for ease of integration into printed circuit boards. The operating temperature range is from 0°C to 70°C. Environmental compliance includes RoHS3 compliance and Moisture Sensitivity Level 1 (Unlimited).
This operational amplifier is part of the Automotive, AEC-Q100 series, indicating its suitability for automotive applications requiring robust performance and reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a J-FET input operational amplifier.
It contains four independent amplifier circuits.
The typical gain bandwidth product is 4 MHz.
The supply voltage range is 6 V to 36 V.
It is available in a 14-SOIC (0.154", 3.90mm Width) surface-mount package.
The operating temperature range is 0°C to 70°C.
