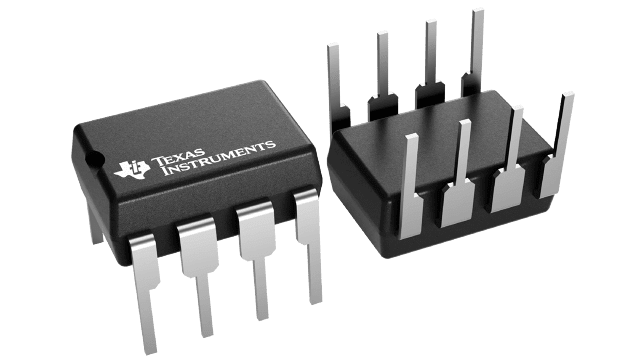

TL072BCP The Texas Instruments TL072BCP is a dual operational amplifier featuring a 3MHz gain bandwidth product and a 13V/µs slew rate. It operates within a supply voltage range of 7V to 30V.
Mfr Part #:

TL072BCP

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TL072BCP is a dual operational amplifier featuring a 3MHz gain bandwidth product and a 13V/µs slew rate. It operates within a supply voltage range of 7V to 30V.
✓ Total Stock: 268 pcs

TL072BCP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
268 pcs
On Request
268 pcs On Request 1 On Request On Request 03+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL072BCP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Architecture
Automotive Grade
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Number of Channels
Operating Temperature Range
Output Current
Package / Case
SVHC Present
Slew Rate
Storage Temperature
Tape & Reel
View Similar Products (0)

TL072BCP Description

Short technical summary and product information.

The TL072BCP from Texas Instruments is a dual operational amplifier designed for general-purpose applications. It offers a gain bandwidth product of 3MHz and a slew rate of 13V/µs, making it suitable for various signal processing tasks.



This operational amplifier operates with a total supply voltage ranging from 7V to 30V. Key electrical characteristics include a typical offset voltage of 3mV and a typical quiescent current per channel of 1.4mA. The input bias current is specified at a maximum of 200pA.



The TL072BCP is available in an 8-pin SOIC package with dimensions of 4.9mm x 6mm (29.4 mm²) and an 8-pin PDIP package measuring 9.81mm x 9.43mm (92.5083 mm²). It is rated for an operating temperature range of 0°C to 70°C.

TL072BCP Quick Information

Product Type: Operational Amplifier
Canonical Name: TL072BCP Dual Operational Amplifier
Subcategory: General-Purpose Op Amps

TL072BCP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL072BCP Features

  • Dual operational amplifier with FET input.
  • 3MHz gain bandwidth product.
  • 13V/µs high slew rate.
  • Low offset voltage of 3mV.
  • Operates from 7V to 30V supply.

TL072BCP Applications

  • General-purpose analog signal processing.
  • Audio pre-amplifier circuits.
  • Active filters.
  • Instrumentation amplifiers.

TL072BCP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the TL072BCP?

The total supply voltage range is 7V minimum to 30V maximum.

What package options are available for the TL072BCP?

The TL072BCP is available in 8-SOIC and 8-PDIP packages.

What is the operating temperature range of the TL072BCP?

The operating temperature range is 0°C to 70°C.

What is the gain bandwidth product of the TL072BCP?

The typical gain bandwidth product is 3 MHz.

What is the slew rate of the TL072BCP?

The typical slew rate is 13 V/µs.

What is the architecture of the TL072BCP?

The architecture is CMOS.

What is the input noise voltage spectral density of the TL072BCP?

The typical input noise voltage spectral density is 37 nV/√Hz at 1 kHz.
