| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Height | |
| Lead Style | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Weight |

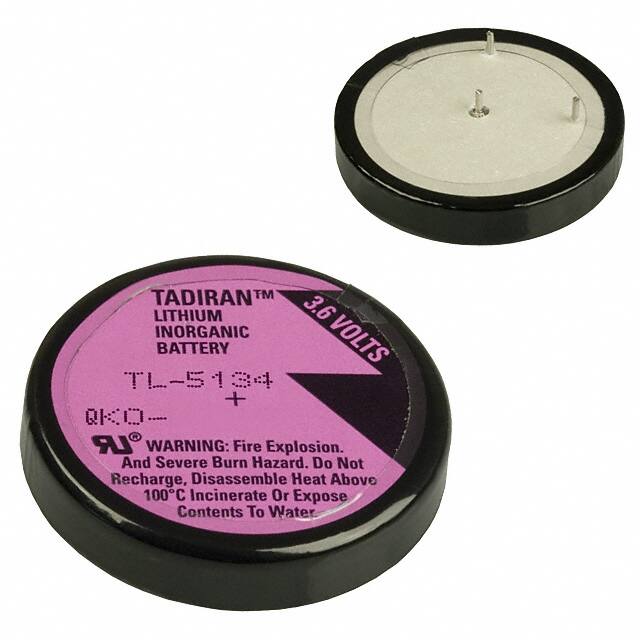

The Tadiran Batteries TL-5134/P is a primary lithium thionyl chloride battery with a nominal voltage of 3.6V and a nominal capacity of 1Ah at 0.5mA discharge to 2V. It is designed for long-life applications requiring high energy density in a compact package.
The battery measures 32.9mm in diameter and 7.2mm in height (1/10D size), weighs 16.8g, and has a volume of 5cc. Termination is via PC pins with tin-plated nickel contacts. The operating temperature range extends from -55°C to +85°C, making it suitable for harsh environments.
This cell is UL recognized under component recognition MH12193. The datasheet provides discharge characteristics at various loads, showing optimal performance at moderate discharge rates. Typical applications include memory backup, industrial controls, and utility metering.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.94 | $8.94 |
| 10+ | $7.36 | $7.36 |
| 25+ | $6.43 | $6.43 |
| 100+ | $6.06 | $6.06 |
| 250+ | $5.53 | $5.53 |
| 396+ | $5.29 | $5.29 |
| 1,188+ | $5.00 | $5.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal voltage is 3.6V.
The nominal capacity is 1Ah at 0.5mA discharge to 2V.
The operating temperature range is -55°C to +85°C.
The cell size is 1/10D with dimensions of 32.9mm diameter and 7.2mm height.
The part is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
The termination style is PC Pin (tin-plated nickel).
Yes, it is UL recognized under component recognition MH12193.
