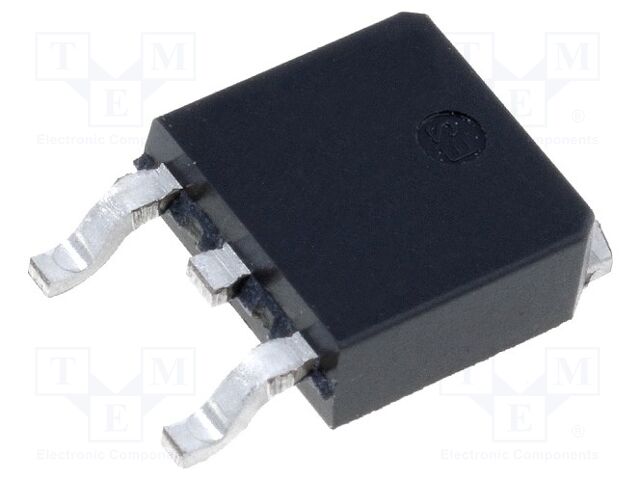

TK65S04K3L The Toshiba TK65S04K3L is an N-channel MOSFET transistor with a 40V drain-source voltage and 65A drain current. It is housed in a DPAK package.
Mfr Part #:

TK65S04K3L

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TK65S04K3L is an N-channel MOSFET transistor with a 40V drain-source voltage and 65A drain current. It is housed in a DPAK package.
✓ Total Stock: 44,339 pcs

TK65S04K3L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
44,339 pcs
On Request
44339 pcs On Request 1 On Request On Request 1652+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TK65S04K3L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Gate Charge
Lead Style
Mounting Type
Power Dissipation
SVHC Present
View Similar Products (0)

TK65S04K3L Description

Short technical summary and product information.

The Toshiba TK65S04K3L is an N-channel MOSFET transistor designed for various electronic applications. It features a drain-source voltage rating of 40V and can handle a continuous drain current of up to 65A, with a power dissipation of 88W.



This MOSFET utilizes an enhancement mode channel and is supplied in a DPAK surface-mount package. Key electrical characteristics include a gate-source voltage tolerance of ±20V, an on-state resistance of 4.5mΩ, and a gate charge of 63nC.



The DPAK package is suitable for surface mounting, offering a compact solution for space-constrained designs. Its specifications make it a suitable component for power switching and amplification circuits where robust performance is required.

TK65S04K3L Quick Information

Product Type: N-Channel MOSFET Transistor
Series: TK
Canonical Name: Toshiba TK65S04K3L N-Channel MOSFET
Subcategory: N-Channel

TK65S04K3L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TK65S04K3L Features

  • 40V drain-source voltage rating.
  • 65A continuous drain current capability.
  • 88W maximum power dissipation.
  • 4.5mΩ typical on-state resistance.
  • DPAK surface-mount package.

TK65S04K3L Applications

  • Power management and DC-DC converters.
  • Motor drive and load switching.
  • Battery protection and load switches.
  • Automotive and industrial power systems.

TK65S04K3L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage of the TK65S04K3L?

The drain-source voltage is 40V.

What is the continuous drain current for the TK65S04K3L?

The continuous drain current is 65A.

What is the power dissipation of the TK65S04K3L?

The power dissipation is 88W.

What is the on-state resistance of this MOSFET?

The on-state resistance is 4.5mΩ.

What type of package is the TK65S04K3L in?

It is supplied in a DPAK package.

How is the TK65S04K3L mounted?

It is designed for SMD mounting.
