| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,100 pcs
|
10100 pcs | On Request | 1 | On Request | On Request | 99+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Supplier Device Package |
The TK65025MTL is a low power step-up DC-DC converter from Toko America Inc, suitable for portable battery-powered systems. It can operate from a single battery cell as low as 0.9V and boosts the input to a regulated 3V output, typically used for microprocessors. The output voltage is laser-trimmed to 3.0V.
Key features include a very low quiescent current, internal bandgap reference, high efficiency MOS switching, and low output ripple. It also incorporates an active-low microprocessor reset signal when the output voltage drops below a preset limit and an undervoltage lockout circuit to prevent operation when battery voltage is too low. Regulation is achieved through Pulse Burst Modulation (PBM).

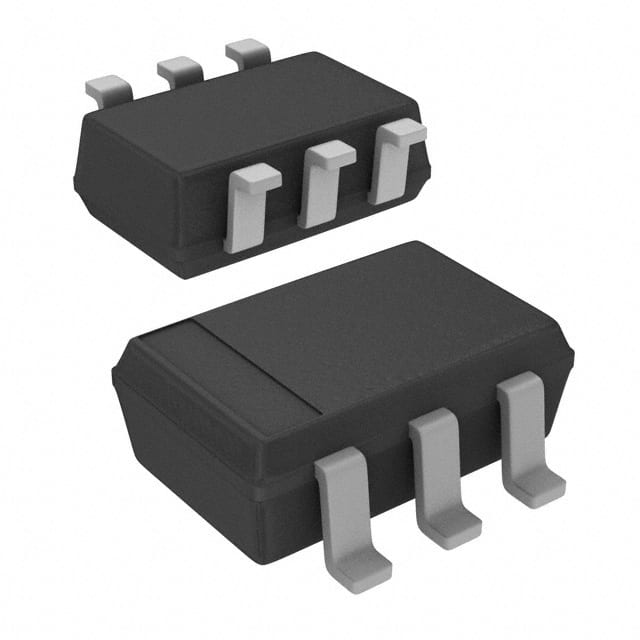

This converter is available in a small SOT-23L surface mount package. Its applications include battery-powered systems, cellular telephones, pagers, personal communications equipment, portable instrumentation, portable consumer equipment, and radio control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 0.9 V to 1.6 V.
The output voltage is a laser-trimmed 3.0 V.
The typical output current is 4 mA.
The operating temperature range is -20°C to 80°C.
It is supplied in a SOT-23L-6 surface mount package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
