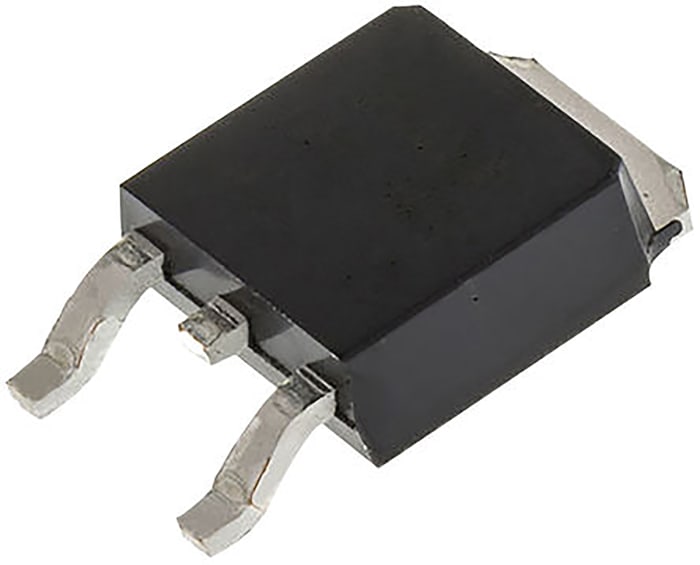

TK5P60W The Toshiba TK5P60W,RVQ(S is an N-channel MOSFET designed for power applications. It features a 600V drain-source voltage and a continuous drain current of 5.4A.
Mfr Part #:

TK5P60W

Available from 2 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TK5P60W,RVQ(S is an N-channel MOSFET designed for power applications. It features a 600V drain-source voltage and a continuous drain current of 5.4A.
✓ Total Stock: 286,000 pcs
$ Price Range: $2.81

TK5P60W Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
226,000 pcs
On Request
226000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
60,000 pcs
On Request
60000 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TK5P60W Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Lead Style
Length
View Similar Products (0)

TK5P60W Description

Short technical summary and product information.

This Toshiba TK5P60W,RVQ(S is an N-channel MOSFET belonging to the TK series. It is designed for enhancement mode operation and comes in a 3-pin TO-252 surface mount package.



Key electrical specifications include a maximum continuous drain current (Id) of 5.4A and a maximum drain-source voltage (Vds) of 600V. The maximum drain-source on-resistance (Rds) is 900mΩ. It also has a typical gate charge (Qg) of 10.5nC at Vgs and a maximum power dissipation (Pd) of 60W.



The MOSFET operates at a maximum temperature of 150°C. Its mechanical dimensions are a length of 6.6mm and a height of 2.3mm. The component is manufactured in China.



This device is suitable for various power switching applications where high voltage and moderate current handling are required.

TK5P60W Quick Information

Product Type: N-Channel MOSFET
Canonical Name: Toshiba TK5P60W,RVQ(S N-Channel MOSFET
Subcategory: N-Channel

TK5P60W Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TK5P60W Estimated Pricing

Qty Low High
1+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

TK5P60W Features

  • N-channel MOSFET for power applications.
  • 600V maximum drain-source voltage.
  • 5.4A maximum continuous drain current.
  • 900mΩ maximum drain-source resistance.
  • TO-252 surface mount package.

TK5P60W Applications

  • Used in AC-DC power supply circuits
  • Suitable for LED lighting drivers
  • Ideal for switching power adapters
  • Applied in high-voltage DC-DC converters

TK5P60W FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the Toshiba TK5P60W?

The maximum drain-source voltage is 600V.

What is the maximum continuous drain current?

The maximum continuous drain current is 5.4A.

What is the maximum drain-source on-resistance?

The maximum drain-source on-resistance is 900mΩ.

What is the maximum power dissipation?

The maximum power dissipation is 60W.

What is the maximum operating temperature?

The maximum operating temperature is 150°C.

What package type is the Toshiba TK5P60W MOSFET?

The MOSFET is supplied in a TO-252 package.
