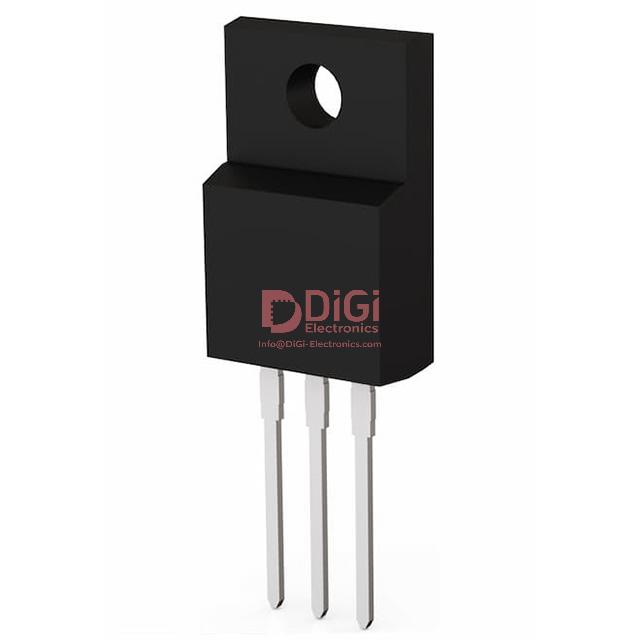

TK5A60W,S4VX The Toshiba TK5A60W,S4VX is an N-Channel MOSFET with a 600V drain-source voltage and 5.4A continuous drain current. It is housed in a TO-220SIS package.
Mfr Part #:

TK5A60W,S4VX

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TK5A60W,S4VX is an N-Channel MOSFET with a 600V drain-source voltage and 5.4A continuous drain current. It is housed in a TO-220SIS package.
✓ Total Stock: 141 pcs
$ Price Range: $2.56

TK5A60W,S4VX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
141 pcs
On Request
141 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TK5A60W,S4VX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

TK5A60W,S4VX Description

Short technical summary and product information.

This N-Channel MOSFET from Toshiba, part number TK5A60W,S4VX, is designed for power switching applications. It features a maximum drain-source voltage (Vdss) of 600V and a continuous drain current (Id) of 5.4A at 25°C. The on-resistance (Rds On) is specified at a maximum of 900mOhm at 2.7A and 10V gate drive voltage.



The device operates at temperatures up to 150°C (TJ) and has a maximum power dissipation of 30W (Tc). Key electrical characteristics include a gate charge (Qg) of 10.5 nC and an input capacitance (Ciss) of 380 pF. The gate threshold voltage (Vgs(th)) is 3.7V at 270µA, and the maximum gate-source voltage (Vgs) is ±30V.



The TK5A60W,S4VX is mounted via a through-hole method and comes in a TO-220SIS package. It utilizes MOSFET (Metal Oxide) technology. Compliance information indicates RoHS3 compliance and Moisture Sensitivity Level 1.

TK5A60W,S4VX Quick Information

Product Type: MOSFET
Canonical Name: TK5A60W,S4VX N-Channel MOSFET
Subcategory: Single

TK5A60W,S4VX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TK5A60W,S4VX Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

TK5A60W,S4VX Features

  • 600V drain-source voltage rating.
  • 5.4A continuous drain current.
  • 900mOhm maximum on-resistance.
  • TO-220SIS package for through-hole mounting.
  • RoHS3 compliant.

TK5A60W,S4VX Applications

  • Suitable for power switching circuits.
  • Used in general power supplies.
  • Applicable in motor control.
  • Ideal for DC-DC converters.

TK5A60W,S4VX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage (Vdss) for the TK5A60W,S4VX?

The maximum drain-source voltage (Vdss) is 600 V.

What is the continuous drain current (Id) for this MOSFET?

The continuous drain current (Id) is 5.4A.

What is the package type for the TK5A60W,S4VX?

The package type is TO-220SIS.

What is the operating temperature range?

The operating temperature range is 150°C (TJ).

What is the maximum on-resistance (Rds On)?

The maximum Rds On is 900mOhm at 2.7A, 10V.

Is the TK5A60W,S4VX RoHS compliant?

Yes, it is RoHS3 compliant.
