Category	Controllers - Process, Temperature
Manufacturer Name	Autonics
Communications	Option Cards Available
Control Method	On/Off, Proportional (PID)
Display Characters	0.551" (14.00mm), 0.394" (10.00mm)
Display Type	LED - Dual Color Characters
Features	Limit Function
Ingress Protection	IP50/IP65 - Dust Tight, Water Resistant
Input Range	-1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV
Mounting Type	Panel Mount
Number of Characters Per Row	4, 4
Output Type	Voltage (External SSR)
Panel Cutout Dimensions	Square - 45.00mm x 45.00mm
Termination Style	Screw Terminal
Type	Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U)
Voltage	100 ~ 240VAC

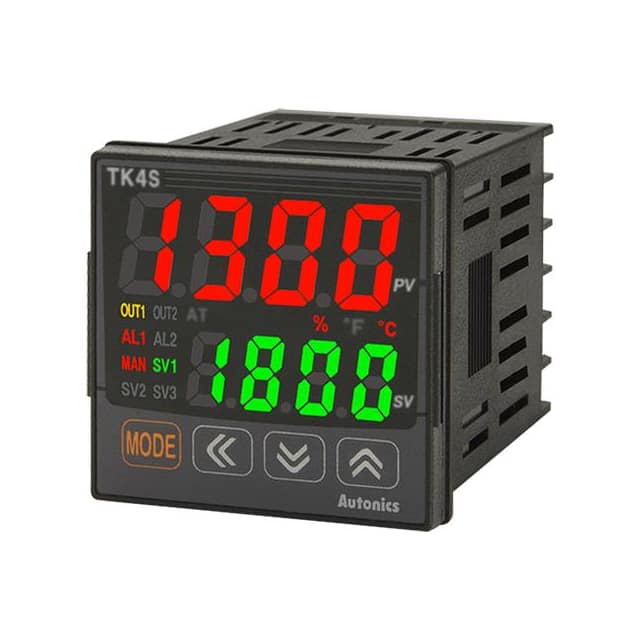

TK4S-R4SN

TK4S-R4SN Specifications Quick View
