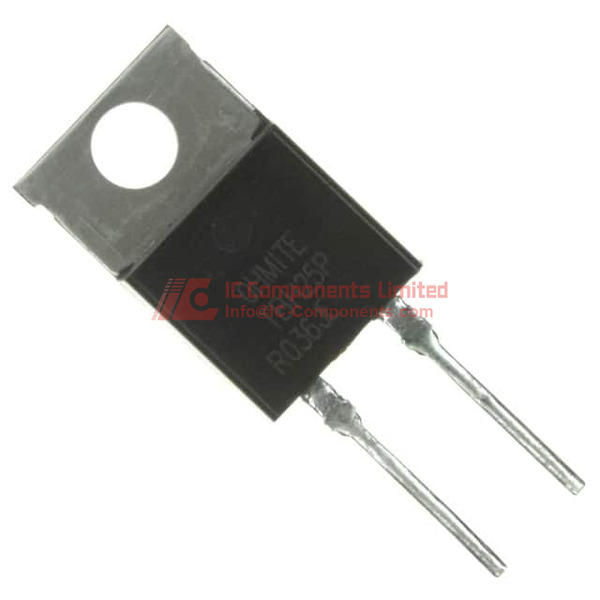

TK20P75R0JE The Ohmite TK20P75R0JE is a 75 Ohm, 20W thick film resistor with a ±5% tolerance, housed in a TO-220 package. It is designed for current sensing applications.
Mfr Part #:

TK20P75R0JE

Available from 1 distributors
Mfr Name: Ohmite
Ohmite
The Ohmite TK20P75R0JE is a 75 Ohm, 20W thick film resistor with a ±5% tolerance, housed in a TO-220 package. It is designed for current sensing applications.
✓ Total Stock: 283 pcs
$ Price Range: $0.01

TK20P75R0JE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
283 pcs
On Request
283 pcs On Request 1 On Request On Request 836 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TK20P75R0JE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

TK20P75R0JE Description

Short technical summary and product information.

The Ohmite TK20P75R0JE is a through-hole resistor featuring a thick film composition. It offers a resistance value of 75 Ohms with a tolerance of ±5% and a power rating of 20W. The component is designed for current sensing applications and has a temperature coefficient of ±200ppm/°C.



This resistor is supplied in a TO-220 package, which is suitable for through-hole mounting. The package dimensions are 10.00mm in length, 4.60mm in width, and 17.80mm in height. It has two terminations.



The TK20P75R0JE is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. Its construction makes it suitable for various electronic circuits requiring precise resistance and power handling capabilities.

TK20P75R0JE Quick Information

Product Type: Resistor
Series: TK
Canonical Name: Ohmite TK20P75R0JE Thick Film Resistor
Subcategory: Through Hole Resistor

TK20P75R0JE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TK20P75R0JE Estimated Pricing

Qty Low High
1+ $0.01 $0.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

TK20P75R0JE Features

  • 75 Ohm resistance with ±5% tolerance.
  • 20W power rating for demanding applications.
  • Thick film composition for stability.
  • TO-220 package for through-hole mounting.
  • Designed for current sensing applications.

TK20P75R0JE Applications

  • Suitable for current sensing circuits.
  • Used in power supply designs.
  • Applicable in motor control systems.
  • Ideal for industrial equipment.

TK20P75R0JE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Ohmite TK20P75R0JE resistor?

The resistance value is 75 Ohms.

What is the power rating of the TK20P75R0JE resistor?

The power rating is 20W.

What is the tolerance of the Ohmite TK20P75R0JE resistor?

The tolerance is ±5%.

What is the temperature coefficient of the TK20P75R0JE?

The temperature coefficient is ±200ppm/°C.

What type of composition does the Ohmite TK20P75R0JE resistor have?

It has a Thick Film composition.

What package is the TK20P75R0JE resistor supplied in?

It is supplied in a TO-220 package.

What are the dimensions of the Ohmite TK20P75R0JE resistor?

The dimensions are 10.00mm in length, 4.60mm in width, and 17.80mm in height.
