Mfr Part #:

TK099V65Z,LQ

Name: TK099V65Z,LQ
Brand: Toshiba
SKU: TK099V65Z,LQ

Mfr Name: Toshiba

Description:

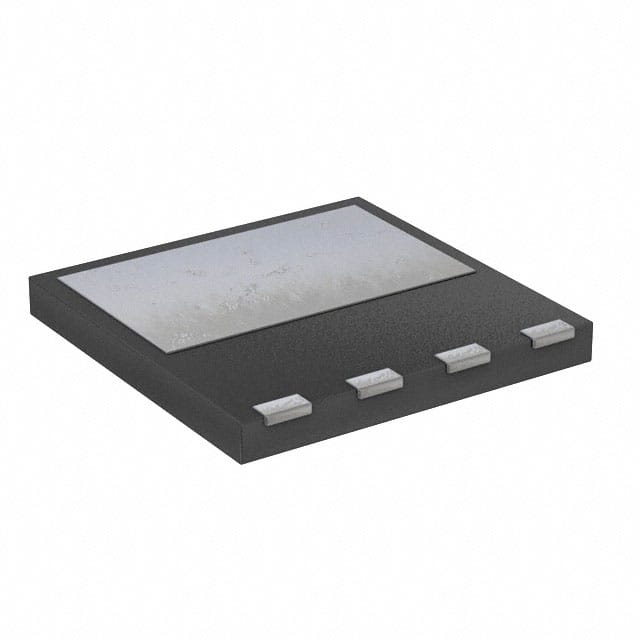

MOSFET N-CH 650V 30A 5DFN

Stock on Request

TK099V65Z,LQ Description

Short technical summary and product information.

MOSFET N-CH 650V 30A 5DFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Toshiba
Current	30A (Ta)
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	10V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	47 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	2780 pF @ 300 V
Mounting Type	Surface Mount
Operating Temperature	150°C
Power Dissipation (Max)	230W (Tc)
Rds On (Max) @ Id, Vgs	99mOhm @ 15A, 10V
Supplier Device Package	5-DFN (8x8)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4V @ 1.27mA
