| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Embedded | |
| Function | |
| Primary Attributes | |
| Supplied Contents | |
| Type | |
| Utilized IC |

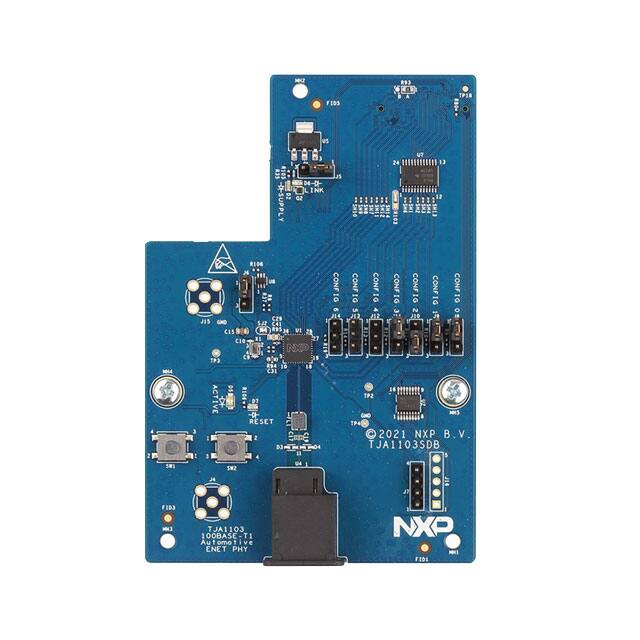

The TJA1103SDB is an evaluation and demonstration board from NXP Semiconductors, designed for the TJA1103 Ethernet PHY IC. It supports 100BASE-T1 (single-pair Ethernet) and includes an embedded MCU for control and interface purposes. The board is supplied as a single unit and is intended for development, testing, and prototyping of automotive or industrial Ethernet applications.
Key specifications include a 100BASE-T1 interface, the TJA1103 utilized IC, and an embedded MCU for onboard processing. The board is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It falls under the category of Evaluation and Demonstration Boards and Kits within Development Boards, Kits, Programmers.
This evaluation board provides a platform for engineers to evaluate the TJA1103 PHY in real-world conditions. It is suitable for applications requiring robust single-pair Ethernet communication, such as automotive in-vehicle networks or industrial automation. The board contents include the populated PCB(s) only.
The TJA1103SDB is an evaluation board for the NXP TJA1103 Ethernet PHY, supporting 100BASE-T1 with an embedded MCU.
It supports 100BASE-T1 (single-pair Ethernet).
Yes, it includes an embedded MCU.
It is RoHS3 compliant.
MSL 1 (unlimited).
