| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,000 pcs
|
60000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
8,897 pcs
|
8897 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,487 pcs
|
1487 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Halogen Free | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The TJA1043TK/1Y from NXP Semiconductors is a third-generation high-speed CAN transceiver. It provides an interface between a CAN protocol controller and a two-wire CAN bus, suitable for 12V and 24V systems. This transceiver implements the physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5, enabling reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s.
Key features include improved EMC and ESD performance, very low power consumption, and passive behavior when the supply voltage is off. It offers advanced low-power management with local and remote wake-up capabilities, along with protection and diagnostic functions like bus line short-circuit detection. The VIO input allows direct interfacing with 3V and 5V microcontrollers.
This device is available in a 14-HVSON package with a Surface Mount type. It operates within a voltage range of 4.5V to 5.5V and has an operating temperature range of -40°C to 150°C. The TJA1043TK/1Y is AEC-Q100 qualified and RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TJA1043TK/1Y supports data rates up to 5 Mbit/s in the CAN FD fast phase.
The TJA1043TK/1Y operates within a voltage range of 4.5V to 5.5V.
The operating temperature range for the TJA1043TK/1Y is -40°C to 150°C.
The TJA1043TK/1Y is a Surface Mount device.

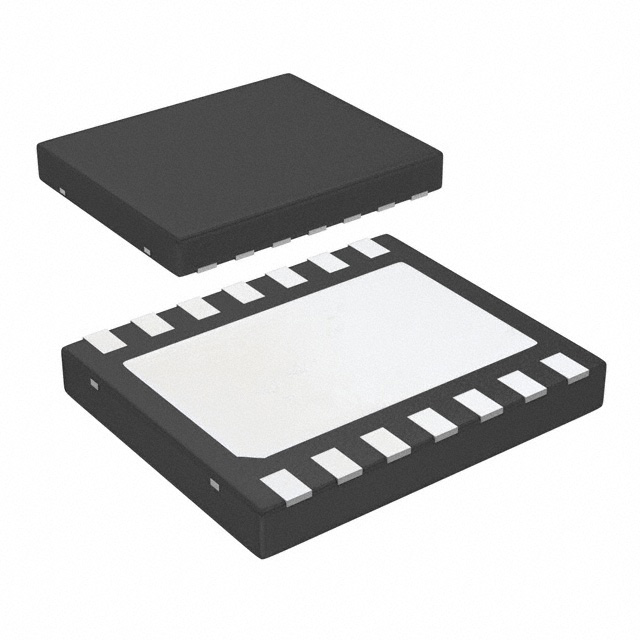

The TJA1043TK/1Y is supplied in a 14-HVSON (3x4.5) package, with the package code being 14-VDFN Exposed Pad.
Yes, the TJA1043TK/1Y is compliant with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5.
Yes, the VIO input on the TJA1043TK/1Y allows for direct interfacing with 3V and 5V microcontrollers.
