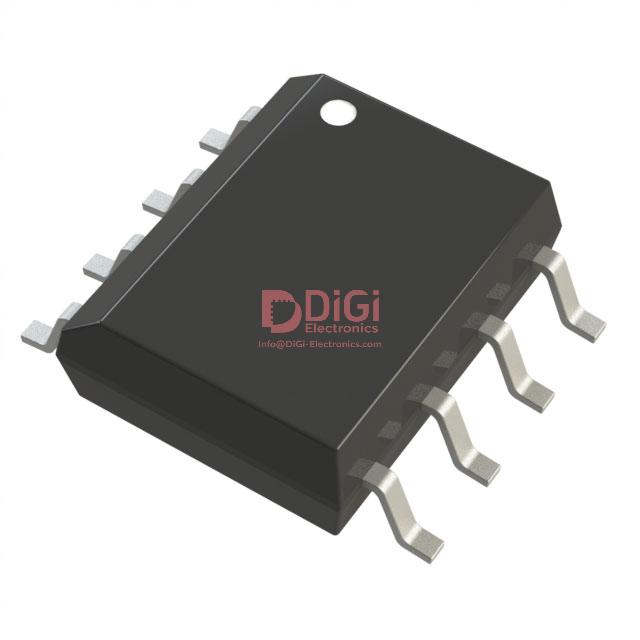

TJA1042T118 The NXP Semiconductors TJA1042T118 is a high-speed CAN transceiver designed for automotive applications. It supports data rates up to 5 Mbps and operates within a 4.5V to 5.5V supply range.
Mfr Part #:

TJA1042T118

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors TJA1042T118 is a high-speed CAN transceiver designed for automotive applications. It supports data rates up to 5 Mbps and operates within a 4.5V to 5.5V supply range.
✓ Total Stock: 4,551 pcs
$ Price Range: $1.44

TJA1042T118 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,471 pcs
On Request
2471 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,080 pcs
On Request
2080 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TJA1042T118 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Halogen Free
Interface
Mounting Type
Operating Temperature
Protocol
Receiver Hysteresis
Storage Temperature
Supplier Device Package
Supply Voltage
Tape & Reel
View Similar Products (0)

TJA1042T118 Description

Short technical summary and product information.

The TJA1042T118 from NXP Semiconductors is a high-speed CAN transceiver that interfaces between a CAN protocol controller and a two-wire CAN bus. It is designed for high-speed CAN applications in the automotive industry, offering reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s.



This transceiver is fully compliant with ISO 11898-2:2016, SAE J2284-1 to SAE J2284-5, and SAE J1939-14 standards. It features a low-current Standby mode with bus wake-up capability, making it suitable for nodes requiring low-power operation. The device is also suitable for 12 V and 24 V systems and offers improved ElectroMagnetic Compatibility (EMC) and ElectroStatic Discharge (ESD) performance.



Key features include timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase, low Electromagnetic Emission (EME) and high Electromagnetic Immunity (EMI). Variants with a VIO pin allow direct interfacing with 3.3 V to 5 V microcontrollers. The TJA1042T118 is AEC-Q100 qualified and comes in an 8-SOIC surface-mount package.

TJA1042T118 Quick Information

Product Type: CAN Transceiver
Canonical Name: TJA1042T High-speed CAN transceiver with Standby mode
Subcategory: CANbus Transceiver

TJA1042T118 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TJA1042T118 Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

TJA1042T118 Features

  • High-speed CAN transceiver for automotive.
  • Supports data rates up to 5 Mbps.
  • Low-current Standby mode with wake-up.
  • AEC-Q100 qualified for reliability.
  • Surface mount 8-SOIC package.

TJA1042T118 Applications

  • Used in automotive CAN networks
  • Suitable for industrial communication systems
  • Ideal for high-speed data transfer in vehicles
  • Designed for robust industrial environments

TJA1042T118 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the data rate of the TJA1042T118?

The TJA1042T118 supports data rates up to 5 Mbit/s in the CAN FD fast phase.

What is the operating supply voltage for the TJA1042T118?

The operating supply voltage range for the TJA1042T118 is 4.5V to 5.5V.

What is the operating temperature range of the TJA1042T118?

The TJA1042T118 operates within a temperature range of -40°C to 150°C.

What package type is the TJA1042T118 supplied in?

The TJA1042T118 is supplied in an 8-SOIC (0.154", 3.90mm Width) surface-mount package.

Is the TJA1042T118 AEC-Q100 qualified?

Yes, the TJA1042T118 is AEC-Q100 qualified.

Does the TJA1042T118 have a standby mode?

Yes, the TJA1042T118 features a very low-current Standby mode with bus wake-up capability.
