| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

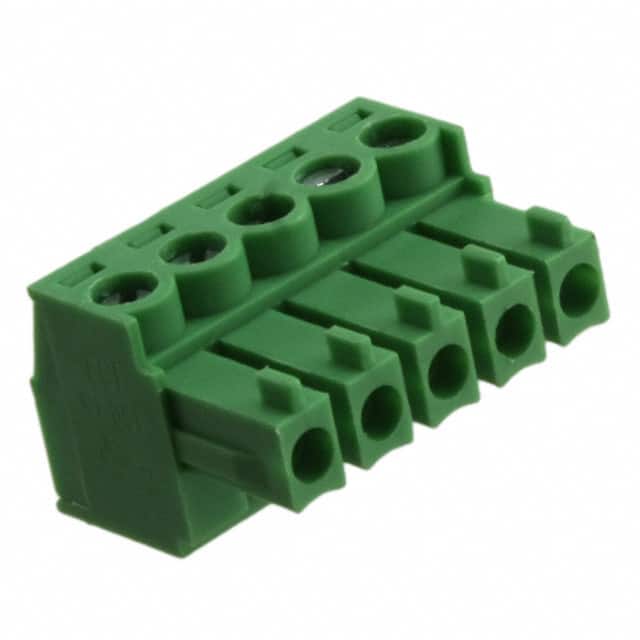

The Amphenol Anytek TJ0531530000G is a 5-position terminal block plug with female sockets designed for free hanging (in-line) mounting. It features a 3.81mm pitch in a single level, making it suitable for compact wiring applications in industrial control and automation systems.
The plug uses a screw rising cage clamp termination system to secure wires from 0.5 to 1.5 mm². Electrical ratings are 300 V at 10 A, with an operating temperature range of -40°C to 115°C. The green housing and tin-plated contacts ensure reliable performance in harsh environments.
The 180° wire entry angle simplifies straight-in wiring, and the free hanging design allows flexible placement without requiring a mating header. The connector meets RoHS3 and REACH compliance standards and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.63 | $1.63 |
| 10+ | $1.18 | $1.18 |
| 25+ | $1.03 | $1.03 |
| 50+ | $0.93 | $0.93 |
| 100+ | $0.84 | $0.84 |
| 250+ | $0.75 | $0.75 |
| 500+ | $0.70 | $0.70 |
| 2,000+ | $0.62 | $0.62 |
| 6,000+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
3.81 mm.
10 A.
300 V.
Free hanging (in-line).
Screw - rising cage clamp.
0.5 to 1.5 mm².
