| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

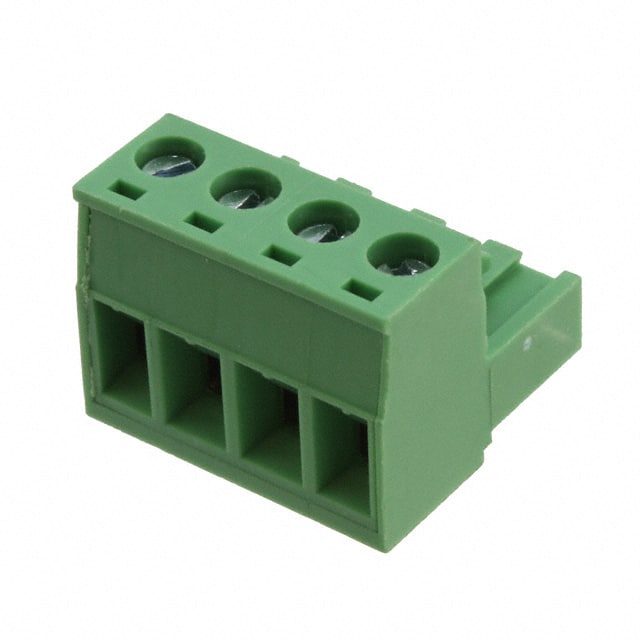

The Amphenol Anytek TJ0451530000G is a 4-position terminal block plug designed for reliable wire-to-board connections. It features a 5.08mm pitch and accepts wire sizes from 1 to 2.5mm². The plug uses a screw rising cage clamp termination for secure wire retention.
This plug is rated for 12A current and 300V voltage, with an operating temperature range of -40°C to 115°C. The contact mating finish is tin, and the housing is green. It includes retention latches on the non-wire side for added connection security.
The free hanging (in-line) mounting style allows flexible placement in wiring harnesses and panel applications. The 180° wire entry simplifies routing in tight spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
| 10+ | $1.30 | $1.30 |
| 25+ | $1.13 | $1.13 |
| 50+ | $1.02 | $1.02 |
| 100+ | $0.93 | $0.93 |
| 250+ | $0.83 | $0.83 |
| 500+ | $0.78 | $0.78 |
| 2,160+ | $0.69 | $0.69 |
| 6,480+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TJ0451530000G has 4 positions in a single level.
The pitch is 5.08mm (0.200 inches).
The current rating is 12A and the voltage rating is 300V.
It uses free hanging (in-line) mounting.
The termination style is screw rising cage clamp.
The plug accepts wire sizes from 1 to 2.5mm².
The operating temperature range is -40°C to 115°C.
