| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

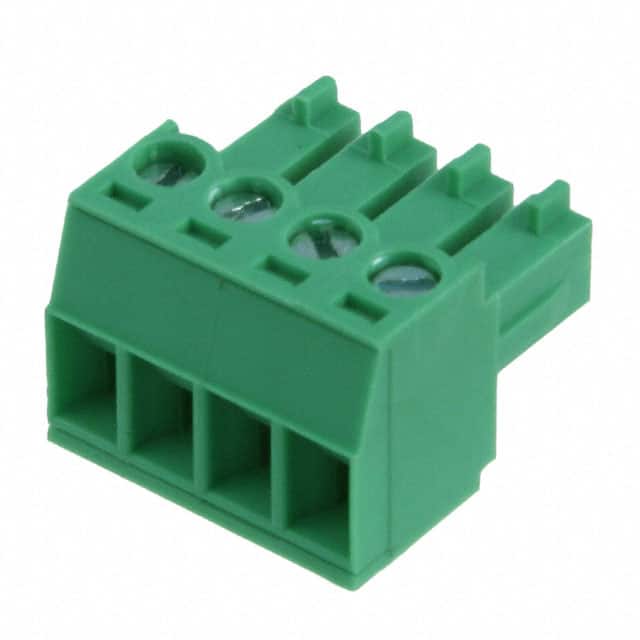

The Amphenol Anytek TJ0431530000G is a 4-position terminal block plug designed for free hanging (in-line) mounting. It features female socket contacts with a tin mating finish and uses a screw - rising cage clamp termination style for secure wire connections.
This plug accepts wire sizes from 0.5 to 1.5 mm² and is rated for 300V and 10A. The operating temperature range is -40°C to 115°C, making it suitable for a variety of industrial and commercial environments. The green housing provides easy visual identification.
With a 3.81mm (0.150 inch) pitch and 180° wire entry, this plug is ideal for compact wiring applications where space is limited. The single-level design simplifies routing and maintenance.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.59 | $1.59 |
| 10+ | $1.15 | $1.15 |
| 25+ | $1.00 | $1.00 |
| 50+ | $0.91 | $0.91 |
| 100+ | $0.82 | $0.82 |
| 250+ | $0.74 | $0.74 |
| 500+ | $0.68 | $0.68 |
| 2,100+ | $0.61 | $0.61 |
| 6,300+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TJ0431530000G has 4 positions.
The pitch is 3.81mm (0.150 inches).
The current rating is 10A and the voltage rating is 300V.
It uses free hanging (in-line) mounting.
The wire gauge range is 0.5 to 1.5 mm².
The operating temperature range is -40°C to 115°C.
It uses screw - rising cage clamp termination.
