| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

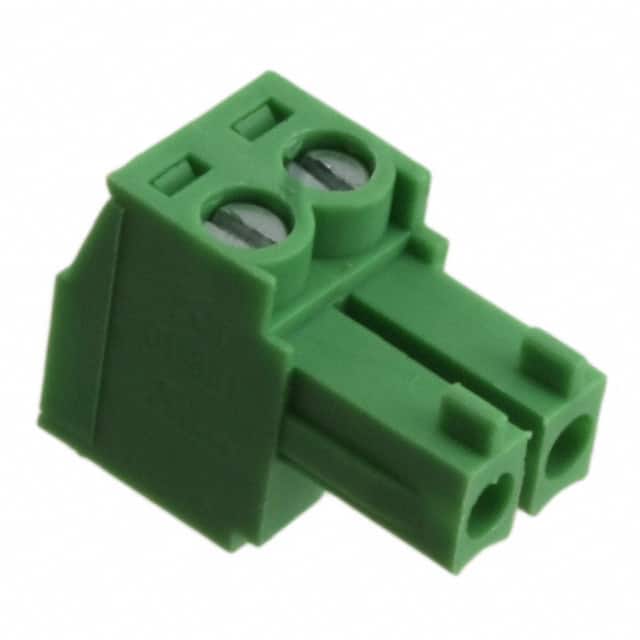

The TJ0231530000G is a terminal block plug from Amphenol Anytek, part of the TJ series. It features 2 positions arranged in a single level with a pitch of 3.81mm (0.150 inches). The plug accepts female sockets and is designed for free hanging (in-line) mounting. Termination is via screw rising cage clamp, suitable for wire gauges of 0.5-1.5mm². The contact mating finish is tin.
Electrically, the device is rated for 10A current and 300V voltage, with an operating temperature range of -40°C to 115°C. The housing is green in color.
This plug is commonly used in industrial control, automation, and power distribution applications where reliable wire-to-board connections are required. The 180° wire entry simplifies wiring in tight spaces.
The component is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is also REACH unaffected. Note that compliance data is unverified and should be confirmed with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.67 | $0.67 |
| 10+ | $0.48 | $0.48 |
| 25+ | $0.41 | $0.41 |
| 50+ | $0.38 | $0.38 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.31 | $0.31 |
| 500+ | $0.29 | $0.29 |
| 1,000+ | $0.24 | $0.24 |
| 5,580+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
3.81mm (0.150 inches).
10 A.
300 V.
Free hanging (in-line).
0.5-1.5mm².
-40°C to 115°C.
