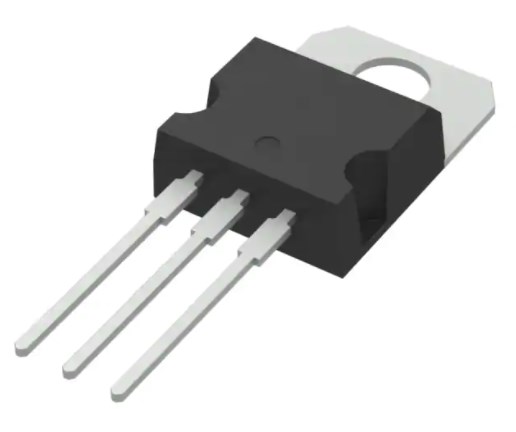

The TIP42C is a PNP epitaxial silicon transistor manufactured by On Semiconductor, designed for medium power linear switching applications. It is the complementary type to the TIP41 series.
Key electrical specifications include a maximum collector-emitter voltage of 100V and a continuous collector current of 6A. The device can handle a pulse collector current of up to 10A. Its DC current gain (hFE) ranges from 15 to 75 under specific test conditions (e.g., 15 @ 3A, 4V). The collector-emitter saturation voltage (Vce(sat)) is a maximum of 1.5V at 600mA base current and 6A collector current, and the base-emitter on-voltage (Vbe(on)) is a maximum of 2.0V under high current conditions.
With a power dissipation rating of 65W at 25°C case temperature (TC) and 2W at 25°C ambient temperature (TA), the TIP42C is suitable for various power applications. The current gain bandwidth product (fT) is 3MHz at 10V collector-emitter voltage and 500mA collector current.
The transistor operates within a junction temperature range of -65°C to 150°C and is housed in a TO-220-3 package, suitable for through-hole mounting. The storage temperature range is also -65°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage for the TIP42C is 100V.
The maximum continuous collector current for the TIP42C is 6A.
The TIP42C transistor comes in a TO-220-3 package.
The operating junction temperature range for the TIP42C is -65°C to 150°C.
The power dissipation of the TIP42C is 65W at 25°C case temperature.
The minimum DC current gain (hFE) of the TIP42C at 3A collector current is 15.
The gain bandwidth product (fT) for the TIP42C is 3.0 MHz.
