| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Collector Cut-Off Current | |
| Collector-Base Voltage | |
| Collector-Emitter Breakdown Voltage | |
| Collector-Emitter Cut-off Current | |
| Collector-Emitter Voltage | |
| Continuous Base Current | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Emitter Cut-off Current | |
| Emitter-Base Voltage | |
| Frequency | |
| I_C (Maximum) | |
| Lead Temperature | |
| Mounting Type | |
| Operating Temperature | |
| P_tot (Maximum @ at (or below) 25 °C case temperature (see Note 2) | |
| P_tot (Maximum @ at (or below) 25 °C free air temperature (see Note 3) | |
| Peak Collector Current | |
| Power | |
| Storage Temperature Range | |
| Supplier Device Package | |
| T_J | |
| Transistor Type | |
| Unclamped inductive load energy | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage | |
| h_FE (Minimum @ VCE = -4 V, IC = -1 A (see Notes 5 and 6) | |
| h_FE (Typical @ VCE = -4 V, IC = -0.2 A (see Notes 5 and 6) |

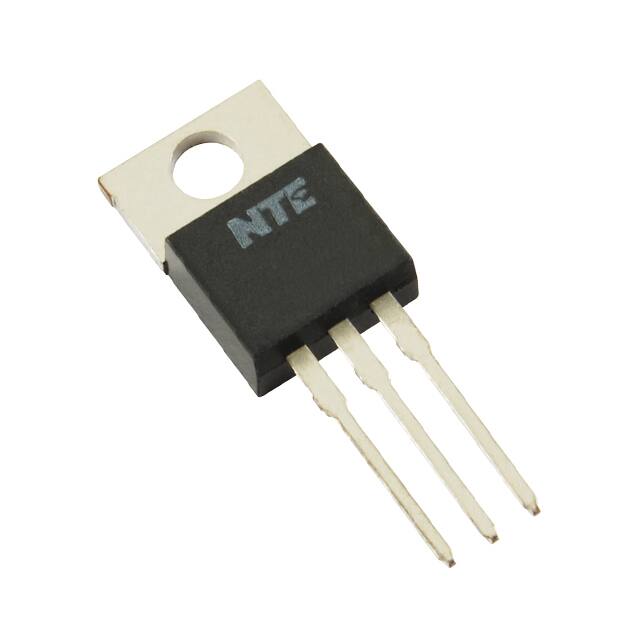

The NTE Electronics TIP30B is a PNP silicon power transistor housed in a TO-220 package. It is designed for complementary use with the TIP29 series and offers a continuous collector current of 1A and a peak collector current of 3A. The device features a collector-emitter voltage rating of 80V and a collector-base voltage rating of 120V.
With a continuous device dissipation of 30W at 25°C case temperature, the TIP30B is suitable for power applications. It operates across a junction temperature range of -65°C to +150°C. The transistor has a typical DC current gain (hFE) of 40 at 200mA and 4V, and a saturation voltage (Vce sat) of 700mV at 125mA and 1A.
This through-hole mounted component is designed for reliable performance in various electronic circuits. Its robust construction and electrical characteristics make it a versatile choice for power switching and amplification tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCEO) is -80V.
The TIP30B is available in a TO-220-3 through-hole package.
The operating junction temperature range is -65°C to +150°C.
The maximum continuous collector current is -1A.
The minimum hFE is 15 at -1A collector current, and typical hFE is 40 at -0.2A.
Maximum power dissipation is 30W at case temperature 25°C and 2W at free air temperature 25°C.
The typical transition frequency is 3MHz.
