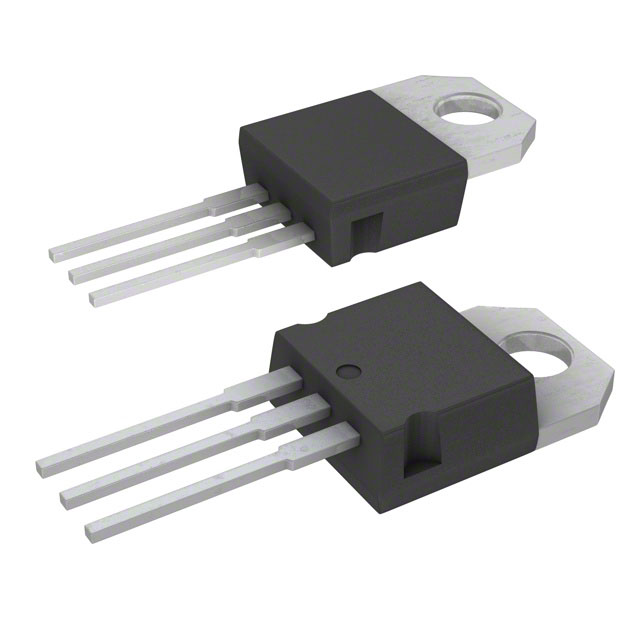

The STMicroelectronics TIP147T is a PNP Darlington bipolar junction transistor (BJT) designed for power switching and amplification applications. It features a high collector-emitter voltage rating of 100V and a continuous collector current capability of 10A.
With a significant power dissipation of 90W, this transistor is suitable for demanding applications. It offers a high DC current gain (hFE) of 1000 at 5A and 4V, and a Vce saturation of 3V at 40mA and 10A. The operating temperature range is up to 150°C (TJ).
The TIP147T is housed in a standard TO-220-3 package, designed for through-hole mounting. This package type facilitates easy integration into circuit boards and provides adequate heat dissipation for moderate power levels.
This component is RoHS3 compliant, has an MSL rating of 1 (Unlimited), and is REACH unaffected, making it suitable for a wide range of electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage of the TIP147T is 100V.
The continuous collector current for the TIP147T is 10A.
The power dissipation of the TIP147T is 90W.
The operating temperature range for the TIP147T is up to 150°C (TJ).
The TIP147T is a PNP Darlington transistor.
The TIP147T is designed for through-hole mounting.
The TIP147T is supplied in a TO-220-3 package.
