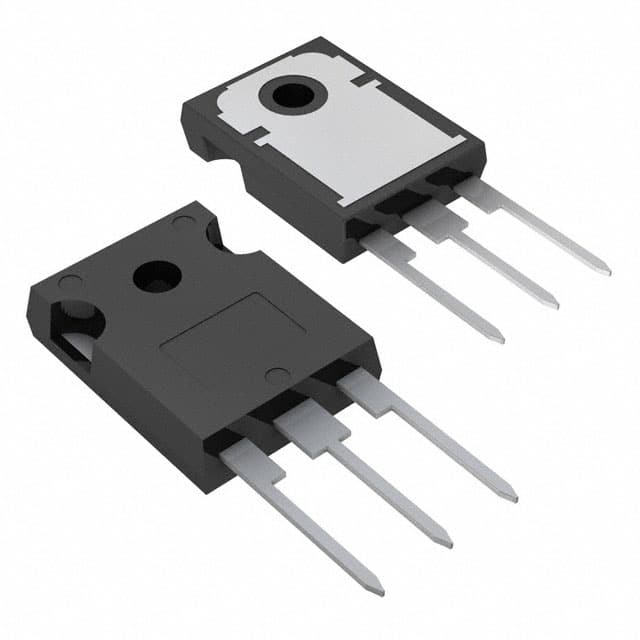

The STMicroelectronics TIP142 is a complementary silicon power transistor featuring a monolithic Darlington configuration. This design provides exceptional high-gain performance coupled with a very low saturation voltage, making it suitable for general-purpose amplifier and low-frequency switching applications.
Key electrical specifications include a collector-emitter voltage of 100V, a continuous collector current of 10A, and a peak collector current of 15A. The device boasts a high DC current gain (hFE) of 1000 minimum at 5A and 4V, and a maximum Vce saturation of 3V at 40mA and 10A. It can handle a total power dissipation of 125W at 25°C.
This transistor is housed in a TO-247-3 package, designed for through-hole mounting. The operating and storage junction temperature range is from -65°C to +150°C. Thermal characteristics include a junction-to-case thermal resistance of 1.0°C/W and a junction-to-ambient thermal resistance of 35.7°C/W.
The TIP142 is a preferred device for applications requiring robust power handling and high current gain.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage (VCEO) for the TIP142 transistor is 100 Vdc.
The TIP142 has a continuous collector current rating of 10 Adc.
The total power dissipation for the TIP142 transistor is 125 W at 25°C.
The operating and storage junction temperature range for the TIP142 is -65°C to +150°C.
The TIP142 transistor is supplied in a TO-247-3 package.
The minimum DC current gain (hFE) for the TIP142 is 1000 at an IC of 5.0 A and VCE of 4 V.
