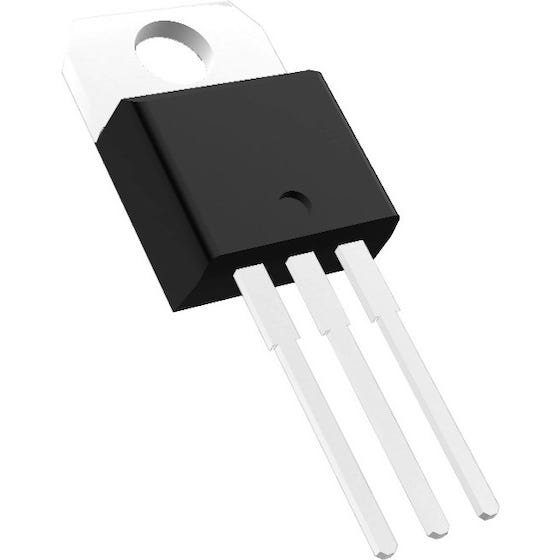

TIP125 The TIP125 is a PNP Epitaxial Darlington Transistor from POWER INNOVATIONS. It features a Collector-Emitter Voltage of -60V and a DC Collector Current of -5A, housed in a TO-220 package.
Mfr Part #:

TIP125

Available from 1 distributors
Mfr Name: Power Innovations
Power Innovations
The TIP125 is a PNP Epitaxial Darlington Transistor from POWER INNOVATIONS. It features a Collector-Emitter Voltage of -60V and a DC Collector Current of -5A, housed in a TO-220 package.
✓ Total Stock: 125 pcs
$ Price Range: $1.94

TIP125 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TIP125 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Junction Temperature
Mounting Type
Storage Temperature
Tape & Reel
View Similar Products (0)

TIP125 Description

Short technical summary and product information.

The TIP125 is a PNP Epitaxial Darlington Transistor designed for medium power linear and switching applications. It is complementary to the TIP120/121/122 series.



Key electrical characteristics include a Collector-Emitter Voltage (VCEO) of -60V and a DC Collector Current (IC) of -5A. The device offers a DC Current Gain (hFE) of 1000 minimum at specified test conditions. Saturation voltages are also provided, with VCE(sat) at -2V maximum for IC = -3A, IB = -12mA, and -4V maximum for IC = -5A, IB = -20mA. The Base-Emitter ON Voltage (VBE(on)) is typically -2.5V at IC = -3A.



Absolute maximum ratings specify a Collector-Base Voltage (VCBO) of -60V and an Emitter-Base Voltage (VEBO) of -5V. The Collector Dissipation is rated at 2W at an ambient temperature of 25°C (Ta=25°C) and 65W at a case temperature of 25°C (TC=25°C). The operating junction temperature (TJ) is 150°C, with storage temperatures ranging from -65°C to 150°C.



The TIP125 is supplied in a TO-220 package, suitable for through-hole mounting.

TIP125 Quick Information

Product Type: PNP Epitaxial Darlington Transistor
Canonical Name: TIP125 PNP Epitaxial Darlington Transistor
Subcategory: Special Purpose

TIP125 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TIP125 Estimated Pricing

Qty Low High
1+ $1.94 $1.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

TIP125 Features

  • PNP Epitaxial Darlington Transistor.
  • Collector-Emitter Voltage: -60V.
  • DC Collector Current: -5A.
  • Minimum DC Current Gain: 1000.
  • TO-220 package for through-hole mounting.

TIP125 Applications

  • Used in high-voltage switching circuits
  • Suitable for power amplification applications
  • Ideal for power regulation modules
  • Applicable in motor control circuits

TIP125 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the Collector-Emitter Voltage for the TIP125 transistor?

The Collector-Emitter Voltage (VCEO) for the TIP125 is -60V.

What is the maximum DC Collector Current for the TIP125?

The maximum DC Collector Current (IC) for the TIP125 is -5A.

What is the DC Current Gain of the TIP125 transistor?

The minimum DC Current Gain (hFE) for the TIP125 is 1000.

What package type is the TIP125 transistor supplied in?

The TIP125 transistor is supplied in a TO-220 package.
