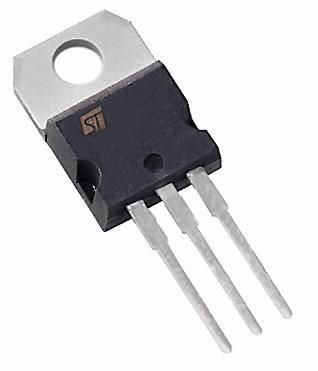

TIP107 The TIP107 is a PNP Darlington transistor from ON Semiconductor, designed for general-purpose amplifier and low-speed switching applications. It features a 100V collector-emitter voltage and 8A continuous collector current.
Mfr Part #:

TIP107

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The TIP107 is a PNP Darlington transistor from ON Semiconductor, designed for general-purpose amplifier and low-speed switching applications. It features a 100V collector-emitter voltage and 8A continuous collector current.
✓ Total Stock: 162 pcs
$ Price Range: $0.51

TIP107 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
112 pcs
On Request
112 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TIP107 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Mounting Type
Operating Temperature
Power
Supplier Device Package
Supplier Package
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

TIP107 Description

Short technical summary and product information.

The TIP107 is a PNP Darlington transistor manufactured by ON Semiconductor, designed for general-purpose amplifier and low-speed switching applications. This component offers a high DC current gain, with a typical hFE of 2500 at 4.0 Adc. It has a collector-emitter sustaining voltage (VCEO(sus)) of 100 Vdc and a continuous collector current rating of 8 Adc, with a peak current capability of 15 Adc.



The transistor is housed in a TO-220-3 package, suitable for through-hole mounting. Its low collector-emitter saturation voltage (VCE(sat)) is 2.5 Vdc maximum at 8.0 Adc. The operating temperature range is -65°C to 150°C (TJ).



Key electrical characteristics include a minimum DC current gain of 1000 at 3A and 4V, and a maximum collector-emitter saturation voltage of 2.5V at 8A and 80mA base current. The device has a total power dissipation of 80W at TC=25°C and 2W at TA=25°C.



This transistor is RoHS3 compliant and has an MSL of 1. It is designed with monolithic construction and includes built-in base-emitter shunt resistors.

TIP107 Quick Information

Product Type: Darlington Transistor
Series: TIP10x
Canonical Name: TIP107 PNP Darlington Transistor
Subcategory: Darlington Transistor

TIP107 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TIP107 Estimated Pricing

Qty Low High
1+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

TIP107 Features

  • PNP Darlington transistor for amplification.
  • 100V collector-emitter voltage rating.
  • 8A continuous collector current.
  • High DC current gain (hFE) up to 2500.
  • TO-220 package for through-hole mounting.

TIP107 Applications

  • General purpose switching and amplification.
  • Power supply output stage circuits.
  • Motor and solenoid driver circuits.
  • High-gain linear amplifier designs.

TIP107 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage of the TIP107?

The maximum collector-emitter voltage is 100 Vdc.

What is the continuous collector current rating of the TIP107?

The maximum continuous collector current is 8 A.

What is the package type of the TIP107?

The TIP107 is available in a TO-220AB through-hole package.

What is the operating temperature range of the TIP107?

The operating junction temperature range is -65°C to 150°C.

What is the typical DC current gain (hFE) of the TIP107?

The typical DC current gain is 2500 at IC = 3.0 A and VCE = 4.0 V.

What is the maximum power dissipation of the TIP107?

The maximum power dissipation is 80 W at a case temperature of 25°C.
