The THS7530PWP from Texas Instruments is a high-speed, fully differential amplifier featuring continuously variable gain. Fabricated using Texas Instruments' BiCom III SiGe complementary bipolar process, this DC-coupled amplifier provides a wide bandwidth of 300 MHz.
Key electrical specifications include a low input voltage noise density of 1.1 nV/√Hz and a noise figure of 9 dB. It exhibits low distortion with HD3 of -61 dBc at 32 MHz and IMD3 of -62 dBc at 70 MHz. The device offers a continuously variable gain range from 11.6 dB to 46.5 dB with a gain slope of 38.8 dB/V. It operates over a supply voltage range of 4.5 V to 5.5 V and an industrial temperature range of -40°C to +85°C.

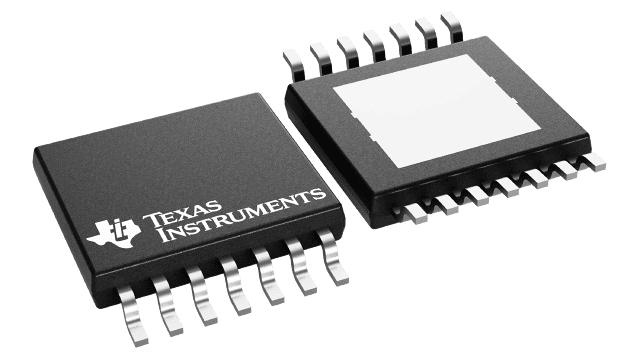

The THS7530PWP features fully differential inputs and outputs, output common-mode voltage control, and output voltage limiting. It is available in a 14-pin HTSSOP (PWP) package with dimensions of 5 mm x 6.4 mm.
Applications include time gain amplifiers in ultrasound, sonar, and radar systems, automatic gain control in communication and video systems, system gain calibration, and variable gain in instrumentation.
The bandwidth of the THS7530PWP amplifier is 300 MHz at Acl.
The typical input voltage noise density for the THS7530PWP is 1.1 nV/√Hz.
The THS7530PWP offers a continuously variable gain range from 11.6 dB to 46.5 dB.
The THS7530PWP is characterized for operation over an industrial temperature range of -40°C to +85°C.
The THS7530PWP operates with a supply voltage range of 4.5 V to 5.5 V.
