THS7347IPHPR The Texas Instruments THS7347IPHPR is a 3-channel RGBHV video buffer with I2C control and a 2:1 input multiplexer. It operates from a 2.7V to 5.5V supply.
Mfr Part #:

THS7347IPHPR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments THS7347IPHPR is a 3-channel RGBHV video buffer with I2C control and a 2:1 input multiplexer. It operates from a 2.7V to 5.5V supply.
✓ Total Stock: 18,384 pcs
$ Price Range: $3.66

THS7347IPHPR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
13,908 pcs
On Request
13908 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,319 pcs
On Request
4319 pcs On Request 1 On Request On Request 19+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
157 pcs
On Request
157 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

THS7347IPHPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Control Method
Mounting Type
Number of Channels
Output Current
Quiescent Current
SVHC Present
Slew Rate
Supply Voltage
Tape Width
View Similar Products (0)

THS7347IPHPR Description

Short technical summary and product information.

The Texas Instruments THS7347IPHPR is a versatile 3-channel video buffer designed for RGBHV signals. It features I2C control for all functions on each channel, allowing for flexible configuration. The device includes a 2:1 input multiplexer, enabling easy switching between video sources.



Key electrical specifications include a typical output current of 0.08A, a wide operating temperature range of -40°C to 85°C, and a supply voltage range of 2.7V to 5.5V. It boasts a 500-MHz bandwidth and a slew rate of 1200 V/µs for its unity-gain buffer path, making it suitable for high-speed video applications. The monitor pass-through function also offers a 500-MHz bandwidth with a 1300 V/µs slew rate.

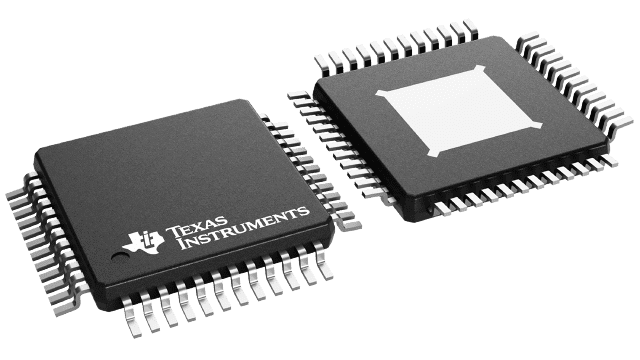

This video buffer is available in a 48-pin HTQFP package, designed for surface mount applications. The total power consumption is typically 265 mW at 3.3V, and a disable function reduces current to 0.1 µA, contributing to power efficiency. Selectable input bias modes and rail-to-rail output further enhance its application flexibility.

THS7347IPHPR Quick Information

Product Type: Video Buffer
Canonical Name: THS7347IPHPR 3-Channel RGBHV Video Buffer with I2C Control
Subcategory: Video Buffer

THS7347IPHPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

THS7347IPHPR Estimated Pricing

Qty Low High
1+ $3.66 $3.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

THS7347IPHPR Features

  • 3-channel RGBHV video buffer.
  • I2C control for all functions.
  • 500-MHz bandwidth and 1200 V/µs slew rate.
  • Operates from 2.7V to 5.5V supply.
  • 48-pin HTQFP surface mount package.

THS7347IPHPR Applications

  • Ideal for video signal buffering.
  • Suitable for RGBHV signal processing.
  • Used in video multiplexer circuits.
  • Supports high-bandwidth video applications.

THS7347IPHPR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the bandwidth of the THS7347IPHPR?

The typical bandwidth is 500MHz.

What is the supply voltage range for the THS7347IPHPR?

The supply voltage range is 2.7V to 5.5V.

What package does the THS7347IPHPR come in?

It comes in a 48-pin HTQFP (PHP) surface-mount package.

What is the operating temperature range of the THS7347IPHPR?

The operating temperature range is -40°C to 85°C.

Does the THS7347IPHPR support I2C control?

Yes, it features I2C control method.

What is the typical slew rate of the THS7347IPHPR?

The typical slew rate is 1200V/µs.
