Mfr Part #:

THS7314

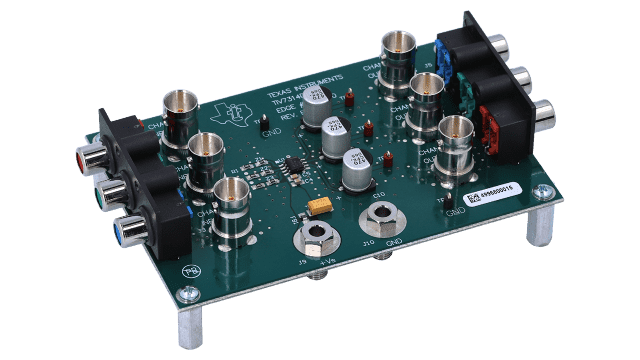

The Texas Instruments THS7314 is a 3-channel SDTV video amplifier designed for CVBS, S-Video, and Y'P'BP'R signals. It features integrated 5th-order low-pass filters and a built-in 6dB gain.

✓ Total Stock: 200,000 pcs

$ Price Range: $1.32

THS7314 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	200,000 pcs On Request	200000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

THS7314 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Texas Instruments
Attenuation	47dB at 27-MHz
Gain	6dB
Number of Channels	3
Output Current	0.07A

View Similar Products (0)

THS7314 Description

Short technical summary and product information.

The Texas Instruments THS7314 is a versatile 3-channel SDTV video amplifier fabricated using Silicon-Germanium (SiGe) BiCom-III process. It operates from a single 3-V to 5-V supply and is suitable for applications requiring amplification of CVBS, S-Video, Y'P'BP'R 480i/576i, Y'U'V', or G'B'R' (R'G'B') signals.

This device incorporates integrated 5th-order Butterworth low-pass filters with an 8.5-MHz (–3dB) cutoff frequency, making it ideal as a DAC reconstruction filter or an ADC anti-aliasing filter. It offers a -1dB passband bandwidth at 7-MHz and 47dB attenuation at 27-MHz. The THS7314 provides a built-in 6dB gain and features a rail-to-rail output stage capable of driving up to two video lines (75 Ω loads).

Input biasing is versatile, supporting both AC-coupled with sync-tip clamp and DC-coupled configurations. The DC-coupled mode includes a 285-mV output level shift for full sync dynamic range. The AC-coupled modes allow for transparent sync-tip clamping for CVBS signals with sync.

The THS7314 is available in a compact SOIC-8 package, making it suitable for power-sensitive applications like USB-powered or portable video devices. Its low quiescent current of 16 mA at 3.3 V further enhances its suitability for power-conscious designs.

THS7314 Quick Information

Product Type: Video Amplifier

Canonical Name: THS7314 3-Channel SDTV Video Amplifier

Subcategory: SDTV Video Amplifier

THS7314 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

THS7314 Estimated Pricing

Qty	Low	High
1+	$1.32	$1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

THS7314 Features

3-channel SDTV video amplifier.
Integrated 5th-order 8.5MHz low-pass filters.
Built-in 6dB gain (2V/V).
3V to 5V single supply operation.
SOIC-8 package for compact designs.

THS7314 Applications

Ideal for set-top box video buffering.
Suitable for PVR/DVDR output buffering.
Used in USB/portable low power video.
Supports CVBS, S-Video, and Y'P'BP'R signals.

THS7314 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the supply voltage range of the THS7314?

The THS7314 operates from a minimum supply voltage of 2.85V to a maximum of 5.5V.

What is the operating temperature range?

The THS7314 operates from –40°C to 85°C.

What package is the THS7314 available in?

The THS7314 is available in an SOIC-8 package with dimensions 4.9mm × 6mm.

What is the bandwidth of the low-pass filter?

The 5th-order Butterworth low-pass filter has a –3dB bandwidth of 8.5MHz and a –1dB passband of 7MHz.

What is the typical quiescent current?

The typical quiescent current is 16mA at 3.3V supply.

How many video lines can the THS7314 drive?

The THS7314 can drive up to two video lines (75-ohm load).
