| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94,996 pcs
|
94996 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
8,932 pcs
|
8932 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,192 pcs
|
8192 pcs | On Request | 1 | On Request | On Request | 21 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Bandwidth | |
| Current | |
| Current Consumption | |
| Features | |
| Function | |
| Gain | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| PSRR | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The THS6212IRHFR from Texas Instruments is a high-speed, differential broadband PLC/HPLC line driver amplifier designed for demanding applications. It offers a significant bandwidth of 285MHz at a gain of 10V/V and a wide supply voltage range from 10V to 28V.
This amplifier boasts low noise characteristics with a voltage noise density of 2.5nV/√Hz and low distortion, achieving -86dBc for 2nd harmonic and -101dBc for 3rd harmonic distortion at 1MHz with a 100Ω differential load. It provides a high output current capability of over 665mA and a wide output swing of 49VPP.

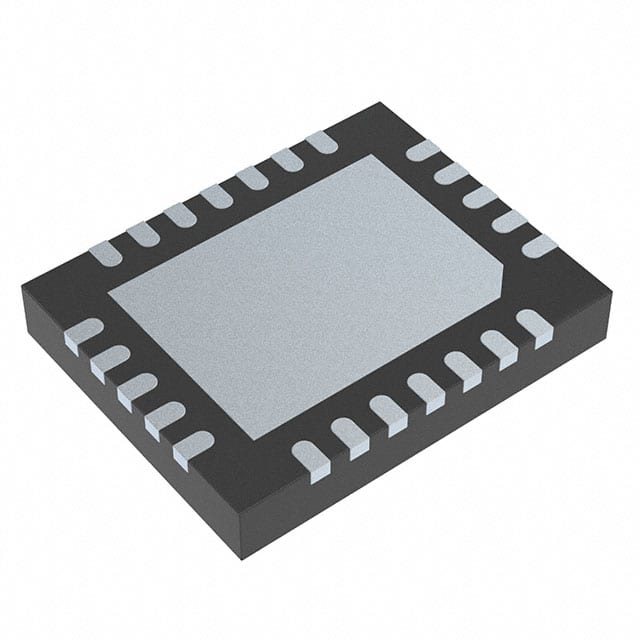

The THS6212IRHFR is housed in a 24-VQFN (5x4mm) package and is designed for surface mount applications. It operates within an industrial temperature range of -40°C to 85°C. Features include adjustable bandwidth, IQ, IOUT, and a low-power shutdown mode, along with IADJ pin for variable bias control. Thermal protection is also included, typically engaging at 175°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C
10V to 28V
285 MHz
665 mA
24-VQFN Exposed Pad
