THS6062ID The Texas Instruments THS6062ID is a dual differential receiver designed for ADSL systems. It offers a 100 MHz bandwidth and operates over a wide voltage range.
Mfr Part #:

THS6062ID

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments THS6062ID is a dual differential receiver designed for ADSL systems. It offers a 100 MHz bandwidth and operates over a wide voltage range.
✓ Total Stock: 458,122 pcs
$ Price Range: $1.44

THS6062ID Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
452,000 pcs
On Request
452000 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,222 pcs
On Request
3222 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,900 pcs
On Request
2900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

THS6062ID Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Duplex
Lead Spacing
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Slew Rate
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

THS6062ID Description

Short technical summary and product information.

The THS6062ID from Texas Instruments is a high-speed, low-noise, dual differential receiver specifically designed for ADSL data communication systems. It features a low voltage noise of 1.6 nV/√Hz, crucial for achieving high signal-to-noise ratios over long transmission lengths on copper telephone lines.



This receiver boasts a high speed with a 100 MHz bandwidth and a 100 V/µs slew rate, making it suitable for demanding applications. It also offers very low distortion, with THD measuring -90 dBc at 1 MHz with a 1 kΩ load, exceeding the requirements of ADSL CODECs.

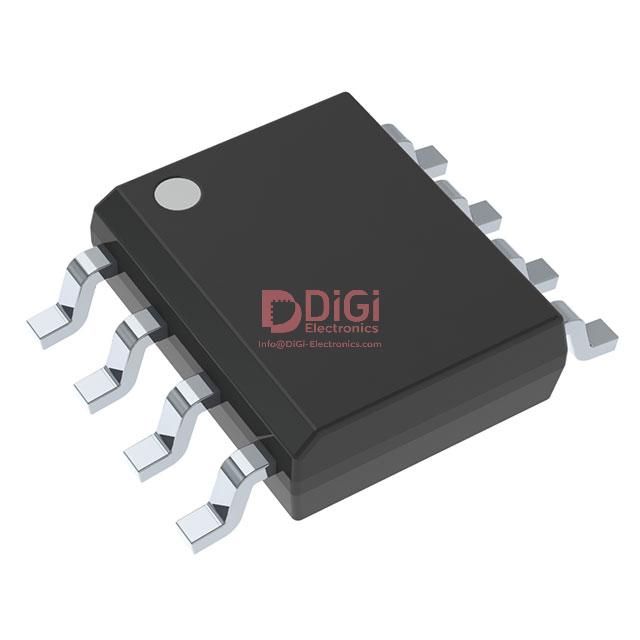

The THS6062ID operates over a wide range of power supply voltages, from 5V to ±15V. It is available in a standard 8-SOIC package, compatible with automated surface-mount assembly procedures.



Key electrical characteristics include a 100 MHz bandwidth, 100 V/µs slew rate, and 90 mA output drive. The device is designed for full duplex operation and supports the DSL protocol.

THS6062ID Quick Information

Product Type: DSL Receiver
Canonical Name: THS6062ID Dual Differential Receiver
Subcategory: DSL Receiver

THS6062ID Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

THS6062ID Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

THS6062ID Features

  • Low-noise ADSL dual differential receiver.
  • 100 MHz bandwidth and 100 V/µs slew rate.
  • Low voltage noise of 1.6 nV/√Hz.
  • Very low distortion of -90 dBc.
  • Operates from 5V to 15V supply.

THS6062ID Applications

  • Suitable for high-speed DSL receiver applications.
  • Used in telecommunications for copper line data transmission.
  • Ideal for low-noise analog signal reception circuits.
  • Applicable in broadband internet infrastructure equipment.

THS6062ID FAQs

8 frequently asked questions generated from this part’s specifications.
What is the bandwidth of the THS6062ID?

The bandwidth of the THS6062ID is 100 MHz.

What is the slew rate for the THS6062ID?

The slew rate for the THS6062ID is 100 V/µs.

What is the typical output drive current?

The typical output drive current is 90 mA.

What is the distortion level at 1 MHz with a 1 kΩ load?

The distortion level is -90 dBc at 1 MHz with a 1 kΩ load.

What is the voltage noise of the THS6062ID?

The voltage noise of the THS6062ID is 1.6 nV/√Hz.

What is the operating voltage range for the THS6062ID?

The THS6062ID operates from a supply voltage of 5V to 15V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package type is the THS6062ID available in?

The THS6062ID is available in an 8-SOIC package.
