| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,135 pcs
|
1135 pcs | On Request | 1 | On Request | On Request | 01+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Lead Style | |
| Number of Pins | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Slew Rate | |
| Supply Voltage | |
| Tape & Reel |
The THS6022CPWPR from Texas Instruments is a dual differential line driver suitable for ADSL, HDSL, and VDSL applications. It is capable of providing a minimum of 200-mA output current into a 50-ohm load.
This device boasts a high speed with a 210-MHz bandwidth (-3-dB) at a 50-ohm load and a slew rate of 1900-V/µs (G=5). It also offers low distortion, with -69-dB third-order harmonic distortion at 1 MHz under specific load and output conditions. The drivers are current feedback amplifiers designed for high slew rates.
The THS6022CPWPR operates with independent power supplies for low crosstalk, supporting a wide supply range of ±5 V to ±15 V. It includes thermal-shutdown and short-circuit protection features. The component is housed in a 14-pin HTSSOP (PWP) package, suitable for surface mounting.
Key electrical characteristics include a wide operating temperature range of 0°C to 70°C. The part is supplied in a 2000-piece tape and reel format.
The THS6022CPWPR provides a minimum output current of 200 mA into a 50-ohm load.
The device has a high-speed bandwidth of 210 MHz (-3-dB) at a 50-ohm load.
The slew rate is 1900 V/µs at a gain of 5.
The THS6022CPWPR operates within a temperature range of 0°C to 70°C.

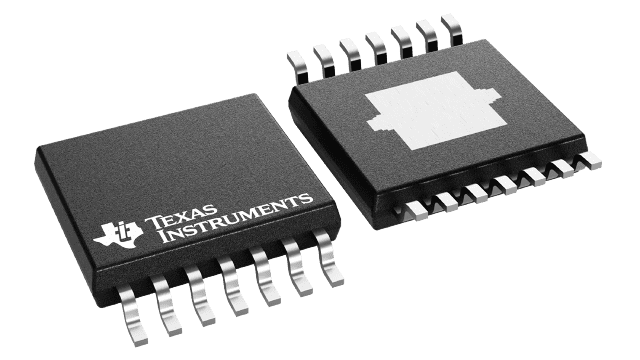

The THS6022CPWPR is supplied in a 14-pin HTSSOP (PWP) package.
The standard package quantity is 2000 units, supplied on tape and reel.
