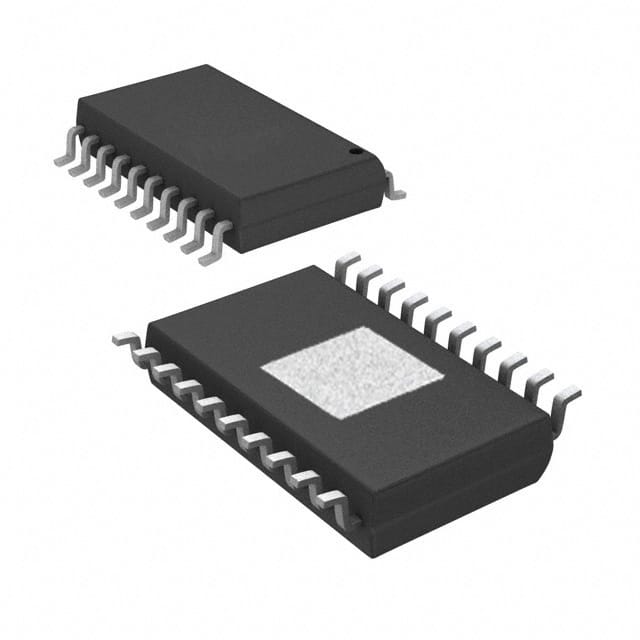

The THS6012CDWPR from Texas Instruments is a 500-mA dual differential line driver suitable for ADSL and PLC applications. It provides 400 mA minimum output current into a 25-ohm load and features a high speed with a 140 MHz bandwidth (-3dB) with a 25-ohm load, and 315 MHz bandwidth (-3dB) with a 100-ohm load.
This device boasts a slew rate of 1300 V/µs and low distortion, with -72 dB 3rd order harmonic distortion at 1 MHz, 25-ohm load, and 20 VPP. It operates over a wide supply range of ±4.5 V to ±16 V and includes independent power supplies for low crosstalk. The THS6012CDWPR is available in a 20-pin thermally enhanced SOIC (DWP) PowerPAD package, designed for surface mounting.
Key features include thermal shutdown and short circuit protection, making it an improved replacement for the AD815. Its design is optimized for the high-peak voltage and current requirements of central office ADSL applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.25 | $5.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The THS6012CDWPR provides a minimum output current of 400 mA into a 25-ohm load.
The bandwidth of the THS6012CDWPR is 140 MHz (-3dB) with a 25-ohm load.
The THS6012CDWPR operates over a supply voltage range of ±4.5 V to ±16 V.
The THS6012CDWPR is supplied in a 20-pin SOIC (0.295", 7.50mm Width) Exposed Pad package.
The operating temperature range for the THS6012CDWPR is 0°C to 70°C.
