| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Efficiency | |
| For Use With | |
| Input Frequency | |
| Operating Temperature | |
| Storage Temperature | |
| Weight |

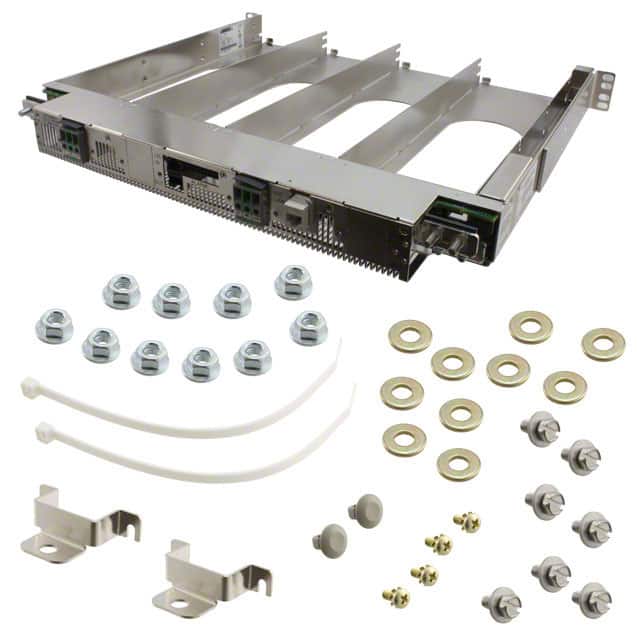

The TDK Corporation THR400 is a power shelf accessory specifically designed for use with the TH Series of power supplies. This unit facilitates the integration and management of multiple TH Series power modules within a rack-mount system.
The THR400 supports a broad AC input voltage range of 90-264 VAC and operates at input frequencies of 47-63 Hz. It boasts a high power factor of 0.99 typical at 230 VAC full load, meeting EN61000-3-2 standards. The operating temperature range is -40 to 70°C, with derating above 50°C. Storage temperature ranges from -40 to 85°C.
Designed for robust environmental conditions, it can withstand humidity levels from 5 to 95% non-condensing and operates at altitudes from -200 to 8000 ft. It meets IEC68-2-27 shock standards (20G) and IEC68-2-64 vibration standards (20-2000Hz random).
The THR400 is part of a rack system, with dimensions specified for the THR4 Rack as 16.30 x 17.31 x 1.7 inches. The rack unit weighs 9 lbs. This power shelf is ideal for applications requiring distributed power architecture and factory automation where space and reliability are critical.
The THR400 supports an AC input voltage range of 90-264 VAC.
The input frequency range for the THR400 is 47-63 Hz.
The power factor is 0.99 typical at 230 VAC full load.
The operating temperature range is -40 to 70°C.
The dimensions for the associated THR4 Rack are 16.30 x 17.31 x 1.7 inches.
The warranty period is 2 years.
The RoHS status is RoHS3 Compliant.
