| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage |

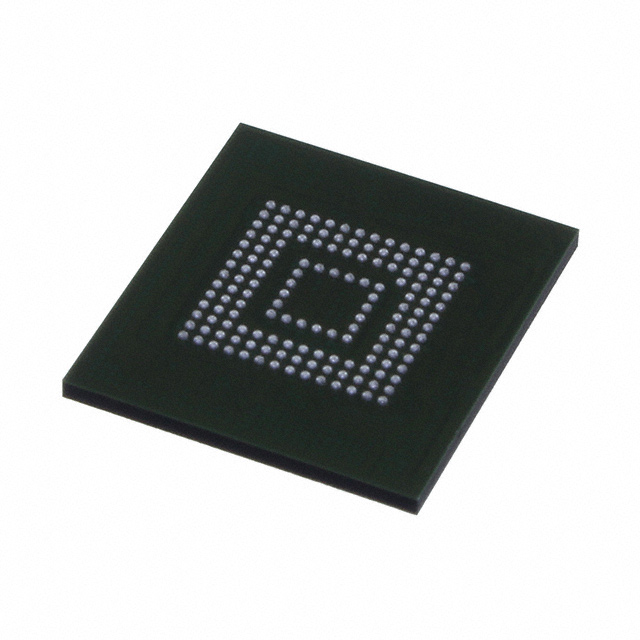

The THGBMNG5D1LBAIL from Kioxia America, Inc. is a 4GB eMMC 5.0 managed NAND Flash module designed for embedded system storage. It utilizes a 153-ball WFBGA package with dimensions of 11.5mm x 13.0mm and a 0.50mm ball pitch, suitable for surface mounting.
This memory IC supports various bus modes including 1-I/O, 4-I/O, and 8-I/O, with interface standards like JEDEC and MMCA version 5.0. It offers high performance with typical sequential read speeds up to 152MB/s (HS200/HS400) and typical sequential write speeds of 14MB/s. The operating voltage range is 2.7V to 3.6V, with VCCQ supporting 1.7V to 1.95V or 2.7V to 3.6V. The operating temperature range is -25°C to +85°C.
Key functions include a managed NAND controller, MMC protocol support, HS200/HS400 capability, and an 8-bit bus. It also features low-power sleep mode with typical current consumption of 100µA (ICCQS). The device provides Pre-EOL information and device life-time estimation, simplifying host software complexity compared to raw NAND.
Typical applications include embedded Linux boot storage, RTOS/MCU high-capacity storage, HMI/display controller storage, industrial control boards, and gateway/communication modules. It is suitable for storing bootloaders, kernels, root filesystems, firmware, logs, configuration data, application data, and user data.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The THGBMNG5D1LBAIL has a storage capacity of 4GB.
The THGBMNG5D1LBAIL uses the JEDEC / MMCA interface standard, version 5.0.
The THGBMNG5D1LBAIL supports 1-I/O, 4-I/O, and 8-I/O bus modes.
The typical sequential read speed is 46MB/s in SDR, 88MB/s in DDR, and 152MB/s in HS200 and HS400 modes.
The operating voltage (VCC) is 2.7V to 3.6V, and VCCQ is 1.7V to 1.95V or 2.7V to 3.6V.
The operating temperature range is -25°C to +85°C.
The THGBMNG5D1LBAIL is supplied in a 153-ball WFBGA package measuring 11.5mm x 13.0mm.
