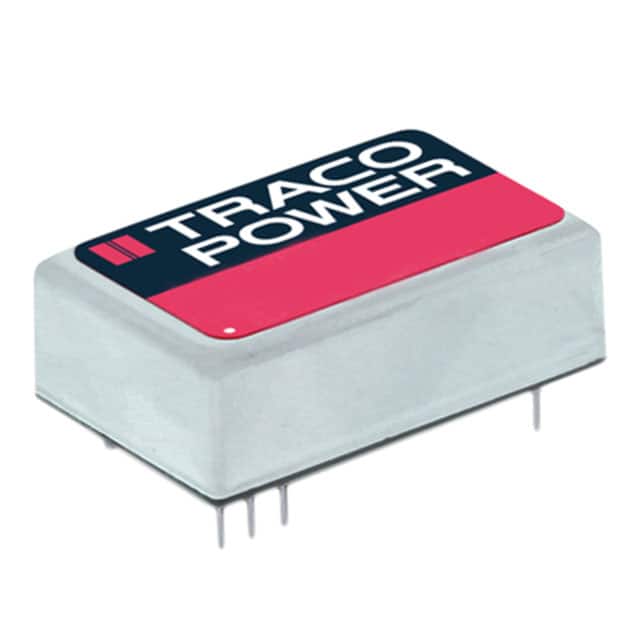

THD 10-1210N Isolated DC/DC converter from Traco Power, THD 10-1210N delivers 3.3V at 2.7A (8.9W) from a 9-18V input. Through hole 24-DIP package, 1500 VDC isolation.
Mfr Part #:

THD 10-1210N

Available from 1 distributors
Mfr Name: Traco Power
Traco Power
Isolated DC/DC converter from Traco Power, THD 10-1210N delivers 3.3V at 2.7A (8.9W) from a 9-18V input. Through hole 24-DIP package, 1500 VDC isolation.
✓ Total Stock: 4 pcs
$ Price Range: $25.29 - $27.63

THD 10-1210N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

THD 10-1210N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Industrial Grade
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

THD 10-1210N Description

Short technical summary and product information.

The Traco Power THD 10-1210N is an isolated DC/DC converter part of the THD 10N series, providing a regulated 3.3V output at up to 2.7A (8.9W) from a wide 2:1 input voltage range of 9-18 VDC (12V nominal). It features high efficiency of 86% typical, reducing power loss and thermal stress.



The converter includes built-in overvoltage protection, remote on/off control, and internal Pi-type input filter. It meets EN 55032 Class A for conducted EMI without external components. Protection features include overload (OCP) and short circuit (SCP) protection.



Packaged in a low-profile 24-DIP module with 9 leads (through hole mounting), the THD 10-1210N measures 31.8mm x 20.3mm x 10.2mm. I/O isolation is rated at 1500 VDC. The operating temperature range is -40°C to +85°C with derating.



Typical applications include industrial electronics, instrumentation, data communication systems, and battery-operated equipment. Safety certifications include IEC 62368-1 and UL 62368-1.

THD 10-1210N Quick Information

Product Type: DC DC Converter
Series: THD 10N
Canonical Name: Traco Power THD 10-1210N Isolated DC/DC Converter, 3.3V Output, 8.9W, 9-18V Input
Subcategory: Board Mount Power Supplies

THD 10-1210N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 95
REACH Status: REACH Unaffected

THD 10-1210N Estimated Pricing

Qty Low High
1+ $27.63 $27.63
10+ $26.99 $26.99
20+ $25.88 $25.88
50+ $25.71 $25.71
100+ $25.53 $25.53
200+ $25.29 $25.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

THD 10-1210N Features

  • 86% typical efficiency at full load.
  • Wide 2:1 input voltage range 9-18V.
  • 1500VDC input/output isolation.
  • Overvoltage and short circuit protection.
  • Through hole 24-DIP module package.

THD 10-1210N Applications

  • Ideal for industrial control systems.
  • Suitable for data communication equipment.
  • Used in battery operated portable devices.
  • Designed for instrumentation and testing.

THD 10-1210N FAQs

4 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the THD 10-1210N?

The output voltage is 3.3V DC with a maximum output current of 2.7A, providing 8.9W of output power.

What is the input voltage range for this converter?

The input voltage range is 9 V to 18 V DC, with a nominal input of 12 V.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C with derating.

Does the THD 10-1210N have isolation?

Yes, it provides 1500 VDC input/output isolation.
