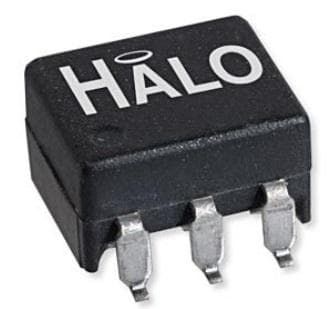

The HALO TGM-240NSLFTR is a pulse transformer from Halo Electronics Inc., designed for reliable performance in electronic circuits. This component offers a robust isolation voltage of 1.5 kVrms, making it suitable for applications requiring electrical separation.
Key electrical specifications include an inductance of 960 µH and a primary resistance of 0.8 Ohms. The turns ratio is specified as 3Ct:4Ct, and the Voltage Time (Et) product is 11 V us. These parameters are critical for pulse shaping and energy transfer in switching power supplies and signal isolation circuits.
Mechanically, the TGM-240NSLFTR features a compact SMD/SMT mounting style with dimensions of 8.13 mm in length, 7.11 mm in width, and 5.08 mm in height. It operates within a thermal range of -40°C to +85°C. The component is supplied in Cut Tape packaging with a standard pack quantity of 1000 units.
This pulse transformer is part of the Dcdc - Smd series, suitable for surface-mount designs. Its construction and specifications make it a versatile component for power conversion and signal integrity applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 960 µH.
The isolation voltage is 1.5 kVrms.
The operating temperature range is -40°C to +85°C.
The dimensions are 8.13 mm length, 7.11 mm width, and 5.08 mm height.
The turns ratio is 3Ct:4Ct.
The primary resistance is 0.8 Ohms.
