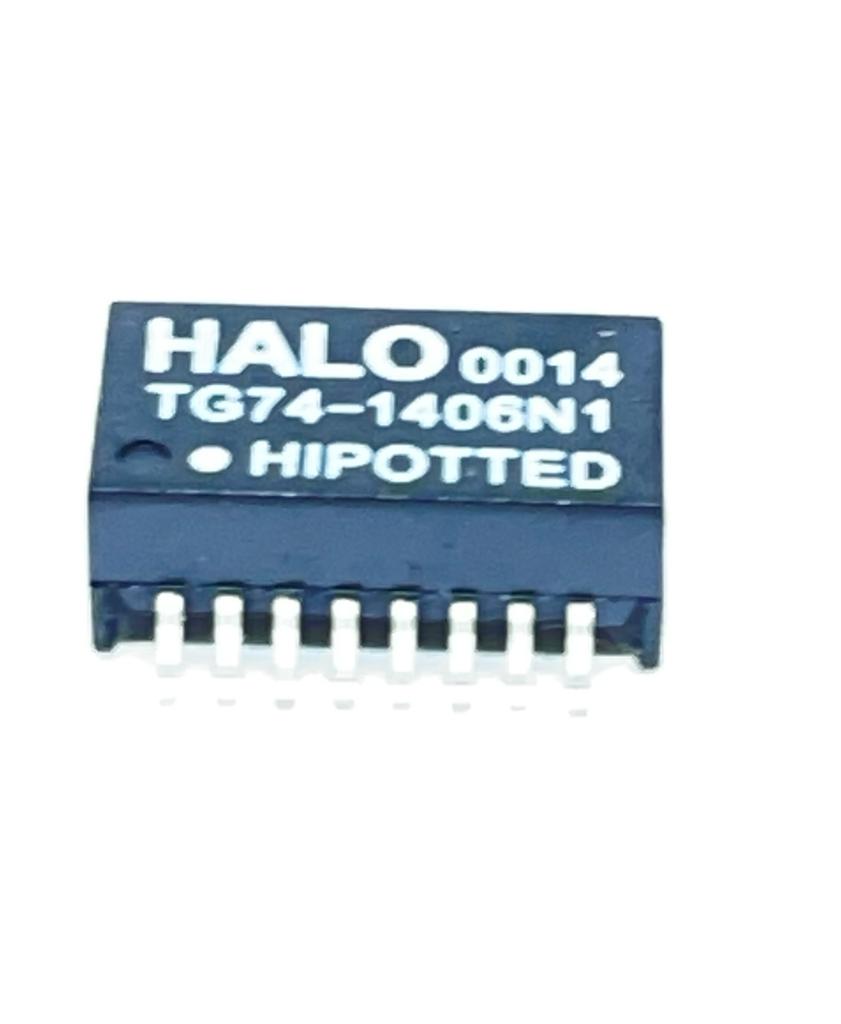

TG741406N1 The Halo Electronics Inc TG741406N1 is an audio and signal transformer designed for 10Base-T interface applications. It features SMD/SMT mounting.
Mfr Part #:

TG741406N1

Available from 2 distributors
Mfr Name: Halo Electronics Inc
Halo Electronics Inc
The Halo Electronics Inc TG741406N1 is an audio and signal transformer designed for 10Base-T interface applications. It features SMD/SMT mounting.
✓ Total Stock: 19 pcs
$ Price Range: $1.32

TG741406N1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 00+ On Request On Request
Partservice ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TG741406N1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
DC Resistance
Failure Rate
Height
Inductance
Length
Mounting Type
Number of Channels
Product Type
Width
View Similar Products (0)

TG741406N1 Description

Short technical summary and product information.

The Halo Electronics Inc TG741406N1 is an audio and signal transformer with a part number of TG741406N1. It is manufactured by Halo Electronics Inc and belongs to the TG-10BT series.



This transformer has an inductance of 140 µH and an isolation voltage of 1.5 kV. It operates within a temperature range of -40 C to +85 C and has a maximum DC resistance of 300 mOhms. The component is designed for a 10Base-T interface application and features a single channel.



Packaged in an SMD-16 case, this transformer utilizes SMD/SMT mounting. Its dimensions are 12.7 mm in length, 7.11 mm in width, and 5.08 mm in height. The product type is classified as Audio & Signal Transformers.

TG741406N1 Quick Information

Product Type: Audio & Signal Transformer
Series: TG-10BT
Canonical Name: Halo Electronics Inc TG741406N1 Audio & Signal Transformer
Subcategory: Audio & Signal Transformer

TG741406N1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TG741406N1 Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TG741406N1 Features

  • Audio and signal transformer for 10Base-T.
  • 140 µH inductance and 1.5 kV isolation.
  • Operates from -40 C to +85 C.
  • SMD/SMT mounting in SMD-16 package.
  • Compact dimensions: 12.7 x 7.11 x 5.08 mm.

TG741406N1 Applications

  • Used in 10Base-T Ethernet interfaces.
  • Suitable for LAN signal isolation applications.
  • Ideal for single-channel audio/signal transformers.
  • Designed for SMD networking equipment modules.

TG741406N1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the Halo Electronics TG741406N1?

140 µH.

What is the isolation voltage of the TG741406N1?

1.5 kV.

What is the operating temperature range of the TG741406N1?

-40 °C to +85 °C.

What is the package type of the TG741406N1?

SMD-16.

What is the maximum DC resistance of the TG741406N1?

300 mΩ.

What is the application of the TG741406N1?

10Base-T interface.

What series does the TG741406N1 belong to?

TG-10BT.
