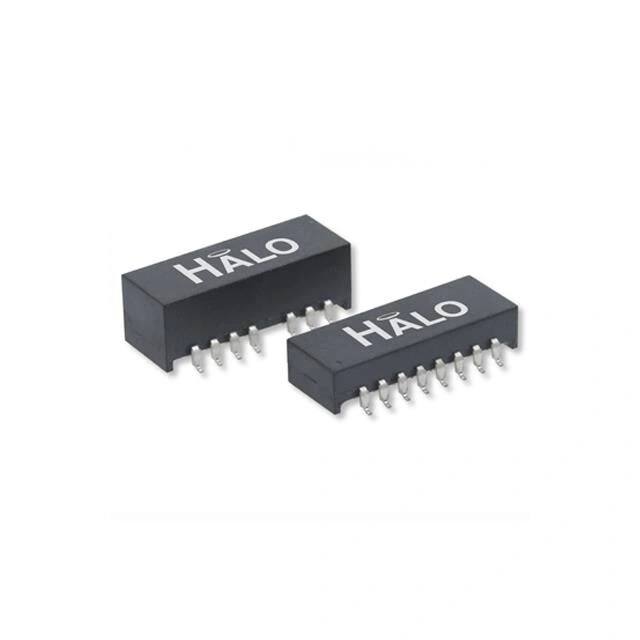

TG22-3506NDRL The TG22-3506NDRL is a pulse transformer from Halo Electronics Inc designed for 10/100 Base-TX interfaces. It features a surface mount package and operates within a frequency range of 100 kHz to 100 MHz.
Mfr Part #:

TG22-3506NDRL

Available from 1 distributors
Mfr Name: Halo Electronics Inc
Halo Electronics Inc
The TG22-3506NDRL is a pulse transformer from Halo Electronics Inc designed for 10/100 Base-TX interfaces. It features a surface mount package and operates within a frequency range of 100 kHz to 100 MHz.
✓ Total Stock: 53 pcs
$ Price Range: $3.00

TG22-3506NDRL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TG22-3506NDRL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current Rating
Frequency Range
Height
Inductance
Length
Number of Channels
Termination Style
Width
View Similar Products (0)

TG22-3506NDRL Description

Short technical summary and product information.

The TG22-3506NDRL is a pulse transformer manufactured by Halo Electronics Inc, suitable for 10/100 Base-TX network interfaces. This component offers a nominal inductance of 350 µH and an isolation voltage of 1.5 kV, ensuring reliable signal transmission.



Designed for surface mounting, the transformer has a compact SMD-16 package measuring 25.4 mm in length, 9.4 mm in width, and 9.4 mm in height. It operates within a temperature range of 0 C to +70 C and has a current rating of 8 mA with a maximum DC resistance of 900 mOhms.



This pulse transformer is ideal for applications requiring signal isolation and impedance matching in Ethernet networking environments. Its specifications support standard 10/100 Base-T operations, making it a suitable choice for network interface cards, routers, and other communication equipment.

TG22-3506NDRL Quick Information

Product Type: Pulse Transformer
Canonical Name: TG22-3506NDRL Audio Transformer / Signal Transformer
Subcategory: Pulse Transformer

TG22-3506NDRL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TG22-3506NDRL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

TG22-3506NDRL Features

  • 350 µH inductance for signal integrity.
  • 1.5 kV isolation voltage for safety.
  • Supports 10/100 Base-TX interface.
  • Compact surface mount package (SMD-16).
  • Wide frequency range of 100 kHz to 100 MHz.

TG22-3506NDRL Applications

  • Used in 10/100 Base-TX networks.
  • Suitable for Ethernet interface cards.
  • Ideal for network routers and switches.
  • Provides signal isolation in communication systems.

TG22-3506NDRL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the TG22-3506NDRL transformer?

The TG22-3506NDRL transformer has a nominal inductance of 350 µH.

What is the isolation voltage for the TG22-3506NDRL?

The TG22-3506NDRL offers a minimum isolation voltage of 1.5 kV.

What is the operating temperature range for this pulse transformer?

The operating temperature range for the TG22-3506NDRL is from 0 C to +70 C.

What type of interface does the TG22-3506NDRL support?

The TG22-3506NDRL is designed for the 10/100 Base-TX interface.

What are the dimensions of the TG22-3506NDRL package?

The TG22-3506NDRL has a package size of 25.4 mm in length, 9.4 mm in width, and 9.4 mm in height.
