Mfr Part #:

TG.66.0723

Name: TG.66.0723
Brand: Taoglas Limited
SKU: TG.66.0723

Mfr Name: Taoglas Limited

Description:

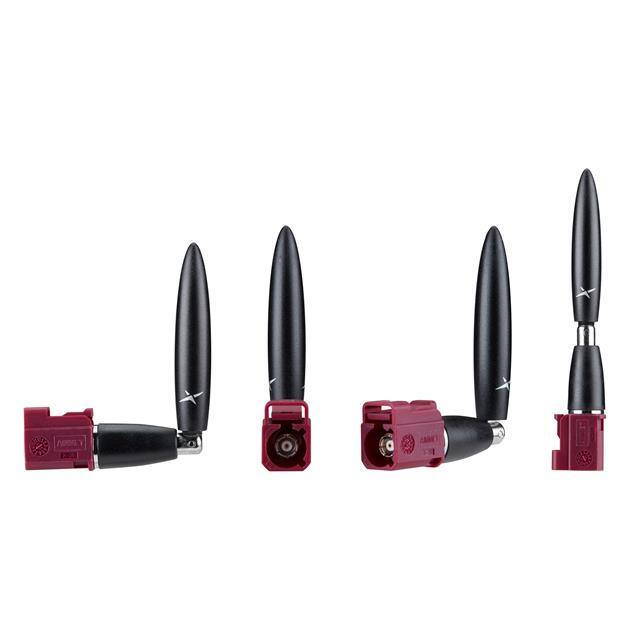

TG.66 WITH FAKRA CODE D

Stock on Request

TG.66.0723 Description

Short technical summary and product information.

TG.66 WITH FAKRA CODE D

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Taoglas Limited
Antenna Type	Whip, Tilt
Applications	3G, 4G, 5G, LTE, Wi-Fi
Frequency (Center	657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz
Frequency Group	Wide Band
Frequency Range	617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Gain	1.9dBi, 1.4dBi, 2.6dBi, 2.6dBi, 2.4dBi, 2dBi, 2.8dBi, 2.7dBi, 2.4dBi, 4.2dBi, 1.3dBi, 4.4dBi, 4.8dBi, 4.3dBi, 1.1dBi, 2.7dBi
Height (Max)	2.795" (71.00mm)
Mounting Type	Connector Mount
Number of Bands	8
Power	10 W
RF Family	Cellular, WiFi
Termination	SMA Male
