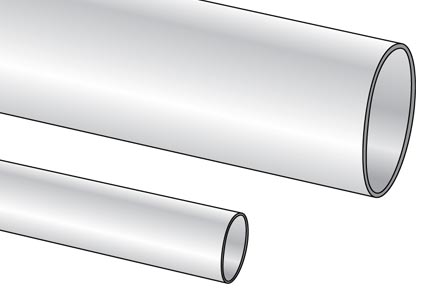

The Alpha Wire TFT-250-20 is a non-shrinkable tubing manufactured from PTFE, offering exceptional performance in harsh environments. It features a minimum inner diameter of 0.032 inches and a maximum of 0.040 inches, with a nominal wall thickness of 0.016 inches. The natural colored tubing is suitable for a broad temperature range from -75°C to 260°C.
This tubing exhibits robust physical and electrical characteristics, including a tensile strength of 2000 psi minimum, elongation of 200% minimum, and a dielectric strength of 800 V/mil minimum. Its volume resistivity is a high 1x10^18 ohm-cm minimum, and the dielectric constant is 2.1. Chemical properties include low water absorption (0.01% max), no corrosion, and pass fungus resistance.
Compliance is assured with RoHS3 and REACH regulations. The product is also lead-free. It is supplied in a standard package of 1000 FT, with package dimensions of 6.5 x 3.75 x 3.25 inches max, containing 4 pieces with a minimum length of 15 FT each.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inner diameter ranges from 0.032 inches minimum to 0.040 inches maximum.
The operating temperature range is -75 to 260°C.
Yes, it is RoHS3 Compliant.
The dielectric strength is 800 V/mil minimum per ASTM D876.
It is made from PTFE (Polytetrafluoroethylene).
Yes, it is lead free.
The nominal wall thickness is 0.016 inches.
