| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,223 pcs
|
7223 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Operating Temperature | |
| Package Quantity | |
| Storage Temperature | |
| Tape & Reel |
The Texas Instruments TFP410PAPR is an active TMDS DVI transmitter/serializer integrated circuit. It operates at pixel rates up to 165MHz, supporting resolutions such as 1080p and WUXGA at 60Hz. This device features a universal graphics controller interface with 12-bit dual-edge and 24-bit single-edge input modes.
It offers adjustable input voltage levels from 1.1V to 1.8V, alongside standard 3.3V CMOS input signal levels. The TFP410PAPR supports both fully differential and single-ended input clocking modes. Programmability is handled via an I2C serial interface, and it includes monitor detection through hot-plug and receiver detection.

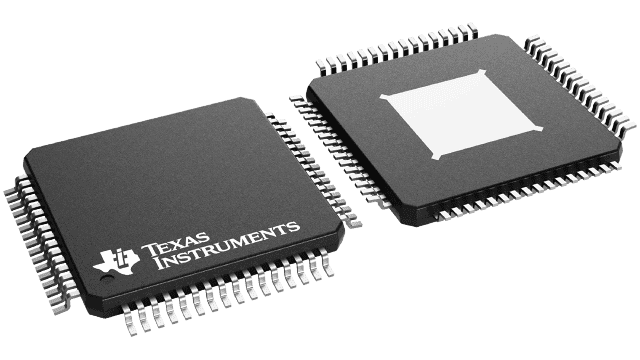

Packaged in a 64-pin HTQFP (PAP) using TI's PowerPAD™ technology, this component operates within a temperature range of 0 to 70°C. It is built using TI's advanced 0.18µm EPIC-5™ CMOS process technology and is pin-compatible with the SiI164 DVI transmitter.
Key features include enhanced PLL noise immunity with on-chip regulators and bypass capacitors, as well as enhanced jitter performance with no HSYNC jitter anomaly and negligible data-dependent jitter.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.86 | $3.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TFP410PAPR supports pixel rates up to 165MHz.
It supports adjustable input voltage levels from 1.1V to 1.8V, and standard 3.3V CMOS input signal levels.
The operating temperature range is 0°C to 70°C.
The TFP410PAPR is available in a 64-pin HTQFP (PAP) package.
The TFP410PAPR is RoHS3 Compliant.
The MSL rating is Level-3-260C-168 HR.
