| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

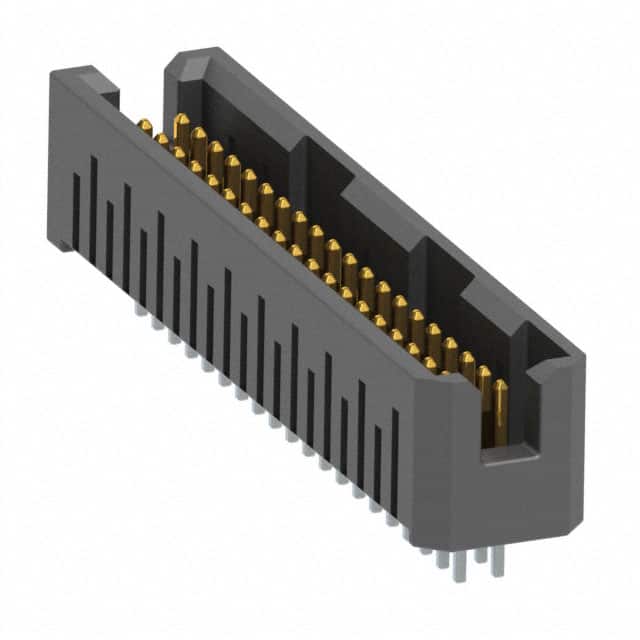

The Samtec TFML-120-01-S-D is a 40-position, 2-row, shrouded through-hole header from the Tiger Eye series. It features a 1.27mm (0.050") pitch and a friction lock fastening type for secure mating. The header uses phosphor bronze contacts with tin plating and is rated for 3.7A per pin (2 pins powered) and 275 VAC. It operates over a temperature range of -55°C to +125°C. The black liquid crystal polymer (LCP) insulator is rated UL94 V-0 for flammability. This connector is suitable for board-to-board or cable applications and supports up to 10,000 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.96 | $5.96 |
| 10+ | $5.43 | $5.43 |
| 20+ | $4.81 | $4.81 |
| 100+ | $4.63 | $4.63 |
| 500+ | $4.34 | $4.34 |
| 1,000+ | $3.93 | $3.93 |
| 2,000+ | $3.66 | $3.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
3.7A per pin when 2 pins are powered.
275 VAC.
Through hole with solder termination.
