| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

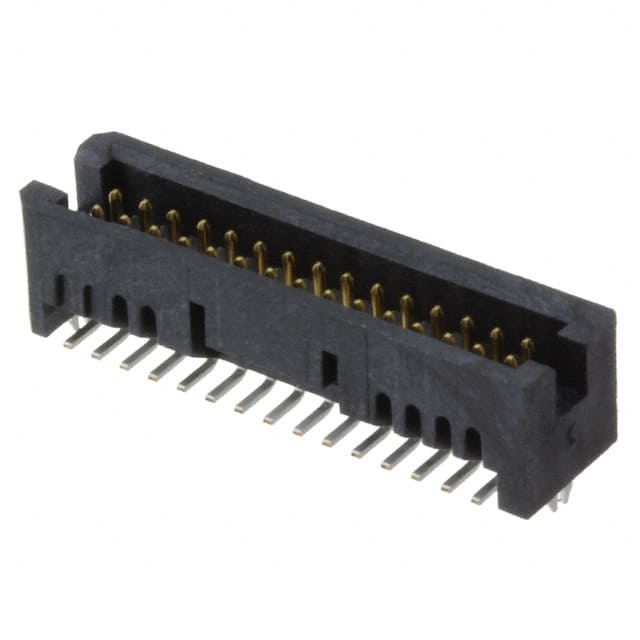

The Samtec TFML-115-02-S-D-LC is a 30 position, 2 row, 1.27mm pitch shrouded header from the Tiger Eye series. It features a 4-wall shrouded design with friction lock for secure mating. The header uses phosphor bronze contacts with a tin finish (30.0µin) and a square contact shape. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This connector is rated for 3.7A per pin (2 pins powered) and 275 VAC, with an operating temperature range of -55°C to +125°C. It is designed for surface mount soldering and includes a board lock feature for additional retention. The contact length is 3.39mm and the insulation height is 5.60mm.
Typical applications include board-to-board and cable interconnects where a compact, high-density 1.27mm pitch is required. The friction lock provides increased unmating force, making it suitable for applications subject to vibration. The part is lead-free solderable and rated for 10,000 mating cycles with the specified gold plating option.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.09 | $5.09 |
| 10+ | $4.66 | $4.66 |
| 104+ | $4.12 | $4.12 |
| 520+ | $3.81 | $3.81 |
| 1,014+ | $3.32 | $3.32 |
| 2,002+ | $2.95 | $2.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 30 positions arranged in 2 rows.
The current rating is 3.7A per pin with 2 pins powered.
The voltage rating is 275 VAC.
Surface mount (SMD) with solder termination.
-55°C to +125°C.
Yes, it has a friction lock for increased unmating force.
