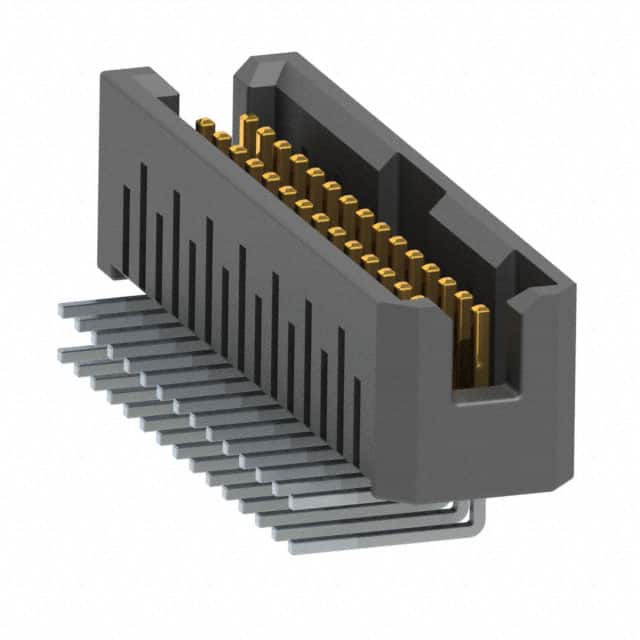

TFML-115-01-L-D-RA Samtec TFML-115-01-L-D-RA is a 30 position, 2 row, right angle shrouded header with friction lock, 1.27mm pitch, through hole termination, and tin plating.
Mfr Part #:

TFML-115-01-L-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TFML-115-01-L-D-RA is a 30 position, 2 row, right angle shrouded header with friction lock, 1.27mm pitch, through hole termination, and tin plating.
✓ Total Stock: 4 pcs
$ Price Range: $2.82 - $4.20

TFML-115-01-L-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFML-115-01-L-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TFML-115-01-L-D-RA Description

Short technical summary and product information.

The Samtec TFML-115-01-L-D-RA is a 30-position, 2-row, right angle shrouded header from the TFML series of Tiger Eye systems. It features a 1.27mm pitch and row spacing, with a 4-wall shrouded design and friction lock fastening for secure mating. The header uses phosphor bronze male square pins with a tin contact finish (15.0µin / 0.38µm) and a liquid crystal polymer (LCP) black insulator rated UL94 V-0.



This connector is rated for 3.7A per pin (2 pins powered) and 275 VAC, with an operating temperature range of -55°C to +125°C. It is designed for through hole, right angle mounting with solder termination, suitable for board-to-board or cable applications. The contact length is 3.39mm and insulation height is 5.72mm.

TFML-115-01-L-D-RA Quick Information

Product Type: Header, Male Pins
Series: TFML
Canonical Name: Samtec TFML Series 30 Position 2 Row Right Angle Shrouded Header with Friction Lock, 1.27mm Pitch, Through Hole, Tin Plating
Subcategory: Shrouded Header

TFML-115-01-L-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TFML-115-01-L-D-RA Estimated Pricing

Qty Low High
1+ $4.20 $4.20
25+ $3.74 $3.74
50+ $3.46 $3.46
500+ $3.45 $3.45
1,000+ $3.44 $3.44
2,500+ $2.82 $2.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFML-115-01-L-D-RA Features

  • 30 position, 2 row right angle header.
  • 1.27mm pitch with friction lock fastening.
  • Rated for 3.7A per pin and 275 VAC.
  • Through hole solder termination.
  • Shrouded 4-wall design with UL94 V-0 LCP insulator.

TFML-115-01-L-D-RA Applications

  • Board-to-board interconnects in compact electronics.
  • Cable-to-board connections requiring secure latching.
  • Industrial control and automation systems.
  • Test and measurement equipment.

TFML-115-01-L-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TFML-115-01-L-D-RA?

The pitch is 1.27mm (0.050").

How many positions does the TFML-115-01-L-D-RA have?

It has 30 positions arranged in 2 rows.

What is the current rating of this connector?

The current rating is 3.7A per pin (2 pins powered).

What is the voltage rating?

The voltage rating is 275 VAC.

What mounting type does the TFML-115-01-L-D-RA use?

It uses through hole, right angle mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

Is the connector shrouded?

Yes, it has a shrouded 4-wall design with a friction lock fastening type.
