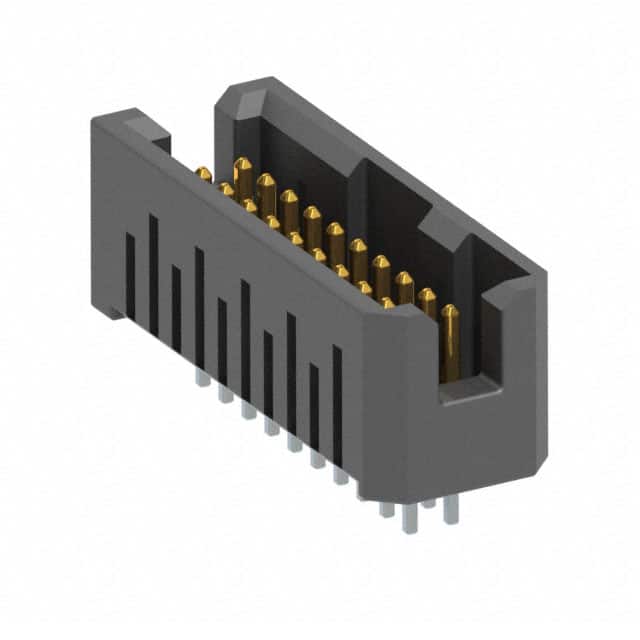

The TFML-110-02-S-D-K-TR is a rugged, high-reliability 20-position header from Samtec's Tiger Eye series. It features a 1.27mm (0.050") pitch with 2 rows of 10 male pins. The connector is fully shrouded with a 4-wall design, providing protection for the contacts and polarization for proper mating. The friction lock ensures secure retention in applications subject to vibration or shock.
This header is surface mount (SMD) for automated assembly, and is supplied on tape and reel for pick-and-place processing. The insulator is molded from black LCP (Liquid Crystal Polymer) rated UL94 V-0 for flammability. Contacts are made of phosphor bronze with a tin finish (0.76µm) on the tail, providing good solderability. The contact length is 3.39mm for reliable mating.
Electrical ratings include a current rating of 3.1A per pin (with 2 pins powered) and a voltage rating of 350 VAC. The operating temperature range is -55°C to +125°C, suitable for demanding environments. The connector is lead-free solderable and capable of 10,000 mating cycles with gold plating options available.
This connector is ideal for board-to-board and cable-to-board applications requiring a compact, high-density interconnect with secure locking.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.78 | $4.78 |
| 25+ | $4.47 | $4.47 |
| 50+ | $4.27 | $4.27 |
| 100+ | $4.17 | $4.17 |
| 575+ | $2.88 | $2.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions arranged in 2 rows.
1.27mm (0.050") pitch.
3.1A per pin when 2 pins are powered.
350 VAC.
Surface mount (SMD) with solder termination.
-55°C to +125°C.
Tin plating on the contacts with 0.76µm thickness.
