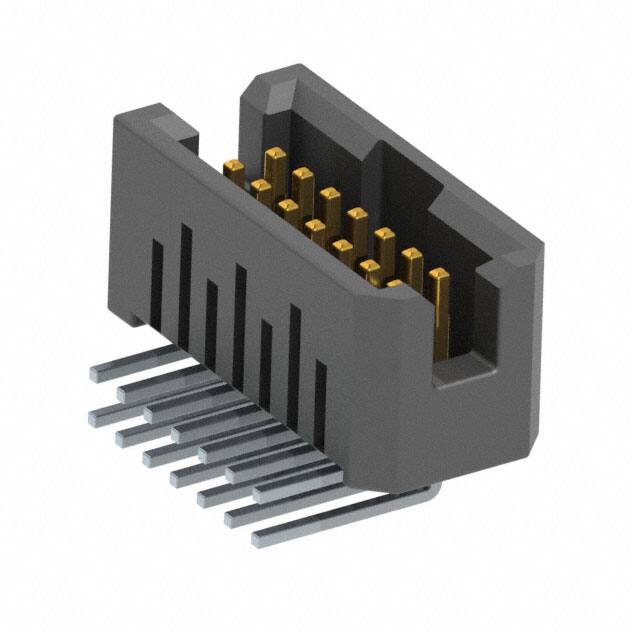

The Samtec TFML-107-01-S-D-RA is a 14-position, 2-row, 1.27 mm pitch right angle through-hole header from the Tiger Eye TFML series, featuring a shrouded 4-wall design with friction lock for secure mating. It is intended for board-to-board or cable interconnection applications.
The contact material is phosphor bronze with a tin finish of 30.0 µin (0.76 µm) over 50 µ" nickel underplate. The insulator is black liquid crystal polymer (LCP) rated UL 94 V-0, and the operating temperature range spans -55°C to 125°C.
Electrical ratings include 3.1 A per pin (2 pins powered), 350 VAC, and the connector is tested for 10,000 mating cycles. All 14 positions are loaded. The contacts are square male pins with a contact length of 3.39 mm. Pitch is 1.27 mm (0.050") and row spacing is also 1.27 mm (0.050").
| Qty | Low | High |
|---|---|---|
| 1+ | $2.86 | $2.86 |
| 25+ | $2.55 | $2.55 |
| 47+ | $2.33 | $2.33 |
| 94+ | $2.17 | $2.17 |
| 517+ | $1.93 | $1.93 |
| 1,034+ | $1.78 | $1.78 |
| 2,538+ | $1.61 | $1.61 |
| 5,029+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions, all loaded, in a 2-row configuration.
1.27 mm (0.050") pitch, with 1.27 mm row spacing.
-55°C to +125°C.
3.1 A per pin (2 pins powered) and 350 VAC.
Through hole, right angle, with solder termination.
Yes, it is a shrouded 4-wall design with a friction lock.
Phosphor bronze contacts with a tin finish of 30.0 µ" (0.76 µm).
