Mfr Part #:

TFM-140-32-S-D-LC

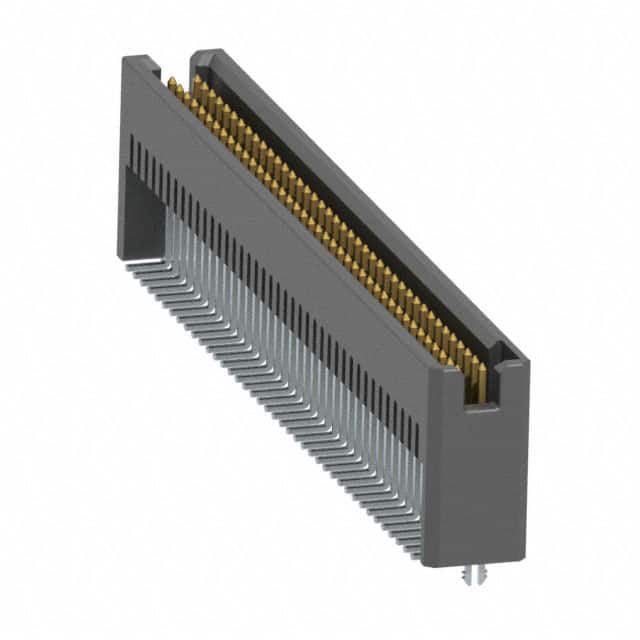

Samtec TFM-140-32-S-D-LC is an 80 position, 2 row, 1.27mm pitch surface mount header with male pins, shrouded 4-wall design, and board lock feature.

✓ Total Stock: 8 pcs

$ Price Range: $8.92 - $12.00

TFM-140-32-S-D-LC Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	8 pcs On Request	8 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TFM-140-32-S-D-LC Description

Short technical summary and product information.

The Samtec TFM-140-32-S-D-LC is a high-density, 80-position header from the Tiger Eye series, designed for board-to-board or cable applications. It features a 1.27mm (0.050") pitch and a 2-row configuration with all positions loaded. The connector uses a shrouded 4-wall design with push-pull fastening and includes a board lock for secure attachment.

Electrical ratings include 2.9A per contact current capacity and 275VAC voltage rating. The operating temperature range spans -55°C to +125°C, suitable for demanding environments. Contacts are made of phosphor bronze with a tin finish (30.0µin thickness) and a square contact shape.

The insulator is black liquid crystal polymer (LCP) with UL94 V-0 flammability rating. The connector is surface mount with solder termination. Contact length is 3.53mm and insulation height is 11.05mm. This part is RoHS3 compliant and has an MSL of 1 (unlimited).

TFM-140-32-S-D-LC Quick Information

Product Type: Header, Male Pins

Series: TFM

Canonical Name: Samtec TFM-140-32-S-D-LC 80 Position 1.27mm Pitch Surface Mount Header, Male Pins

Subcategory: Shrouded Header, Male Pins

TFM-140-32-S-D-LC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TFM-140-32-S-D-LC Estimated Pricing

Qty	Low	High
1+	$12.00	$12.00
10+	$11.88	$11.88
100+	$11.13	$11.13
250+	$10.41	$10.41
500+	$9.64	$9.64
1,000+	$8.92	$8.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-140-32-S-D-LC Features

80 position 1.27mm pitch header.
Shrouded 4-wall design with board lock.
Rated 2.9A per contact, 275VAC.
Operating temperature -55°C to +125°C.
RoHS3 compliant with UL94 V-0 rating.

TFM-140-32-S-D-LC Applications

Board-to-board stacking applications.
Cable-to-board interconnect systems.
High-density signal routing designs.

TFM-140-32-S-D-LC FAQs

7 frequently asked questions generated from this part’s specifications.

What is the pitch of the TFM-140-32-S-D-LC?

The pitch is 1.27mm (0.050").

How many positions does this connector have?

It has 80 positions arranged in 2 rows, all loaded.

What is the current rating per contact?

The current rating is 2.9A per contact.

What is the voltage rating?

The voltage rating is 275VAC.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to +125°C.

Is this connector RoHS compliant?

The part is listed as RoHS3 Compliant, but this is unverified.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	3.53mm (0.139")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9A per Contact
Fastening Type	Push-Pull
Features	Board Lock
Insulation Color	Black
Insulation Height	11.05mm (0.435")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	Smt
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Voltage Rating	275VAC
